GXR4 (AKA Kevin)
GXR4 (AKA Kevin)
Customers outside Australia may be charged import fees (duties, taxes, etc) by local customs authorities upon delivery. This can add 15%-30% to your order (compared to Australian RRP). Please see our shipping policy for more information.
Couldn't load pickup availability
Enquire
Enquire
For info on availability, please contact sales@curvecycling.com,
call us on 03 9088 0274.
Alternatively, Enquire Now
Geometry
Geometry
Shipping
Shipping
Free International Shipping for all Framesets, Complete Bikes, Forks, Wheelsets, Bars and Rocket Pooches is included in the sales price (*excludes Belgie DISC Ultegra)
All other products are subject to shipping charges calculated at checkout. See our Shipping Policy for further details.
FAQs
FAQs
| I want to run the biggest tyres possible. How big can I go? |
We have designed version 4 of the GXR to work well with tyre sizes around 700c x 40mm or 27.5" x 2.1". In 700c mode you can go as wide as 50 mm tyres (or 2.0”). Note that you can go even wider on the front, with the Ride 415 VGM fork having clearance for up to 29 x 2.4” tyres for a super wild reverse-mullet set up! We like to run Vittoria Mezcal in the 27.5" x 2.1" size. Anything larger than that may introduce poor chainstay clearance or even some rubbing. This is 100% normal when going to the largest tyre size that will physically fit in the frame. Note also that there are other factors that affect the ultimate width of the tyre, such as internal rim width and tyre tread pattern. Do not just go by the tyre label. Rider discretion is advised. |
| I want to attach bags. What will it do to the frame finish? |
Curve's custom painted titanium frames are finished with high-quality and durable paint. Like all paint work, it will be adversely affected by rubbing from bike bags, rock strikes, chain slap, etc. If you want to keep your paint in the best possible condition, we recommend using a protective film, especially in the high-wear areas where bag straps are in direct contact with the frame. |
| Can I use a rack? |
With a wide range of frame and fork-mounted rack systems on the market, and with more appearing every week, it is important to understand which rack systems are compatible with your Curve frame and fork, and how to mount them correctly in order to ensure safe riding, avoid damage and voiding your warranty. Before mounting a rack, we strongly recommend you get in touch with us to confirm compatibility and the correct mounting procedure. This will minimise the risk of injury, product damage and voiding your warranty. Your local Curve dealer, or the team at Curve HQ, can also help you select a rack system and mount it to your bike for you. |

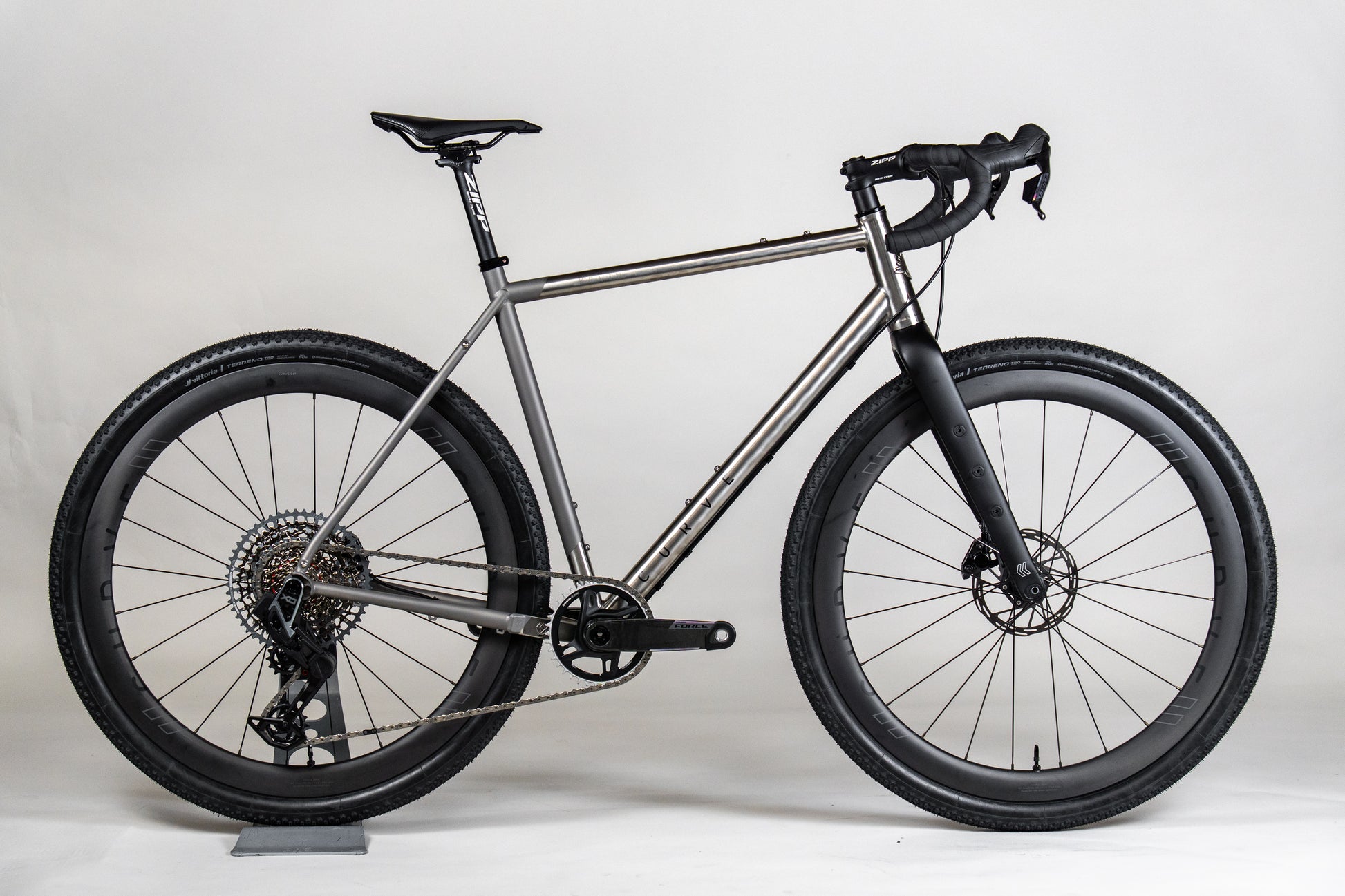

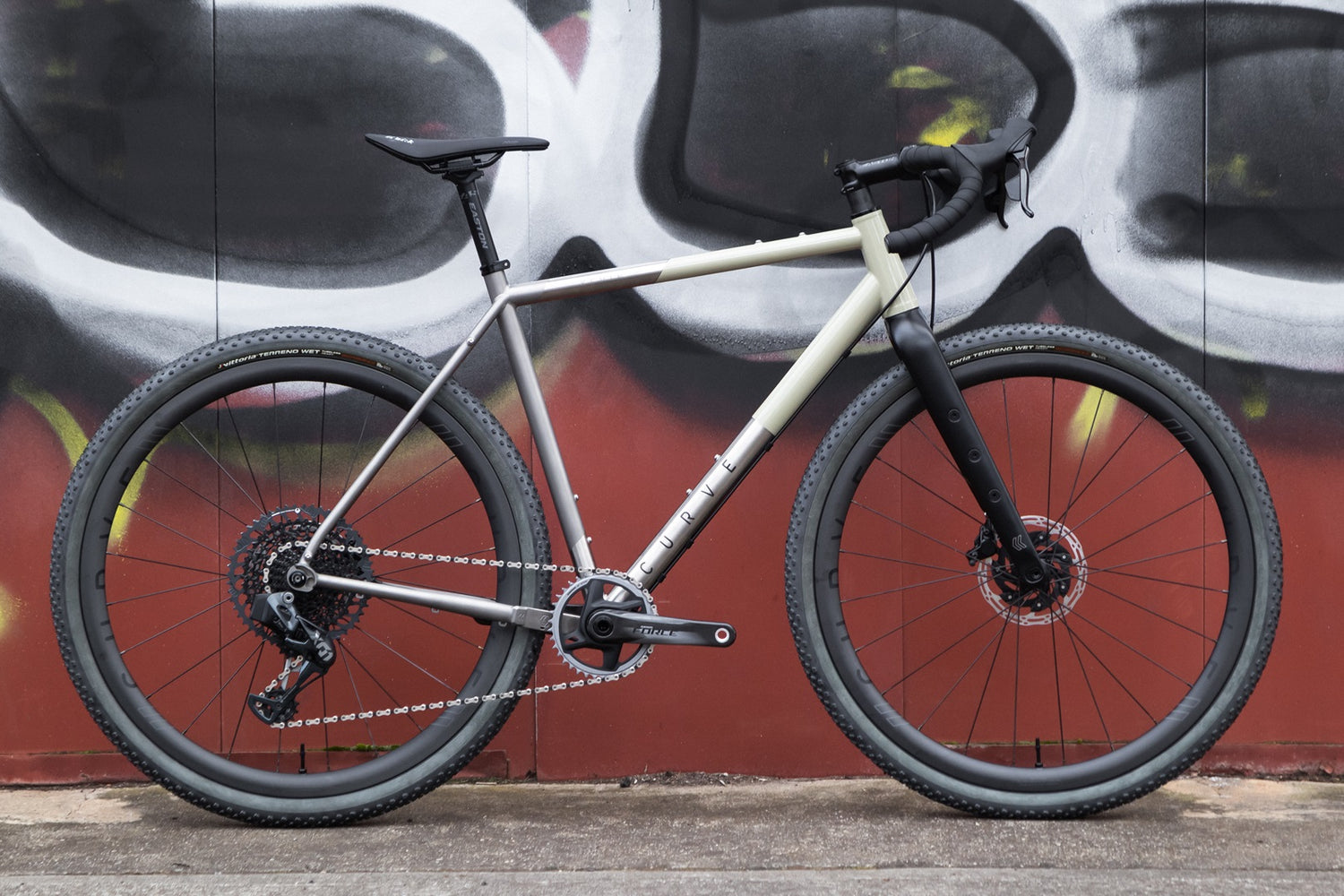

Meet the latest GXR a.k.a. Kevin
One of the first gravel-specific bikes released, the Curve GXR model has been around since well before gravel became cool. Now, with wider tyre clearance, improved mounting options and UDH compatibility, the latest version of our Swiss Army Knife of bikes is more versatile than ever.
We have been ahead of the Curve when it comes to gravel, and the GXR has years of adventure cycling experience woven into its DNA. The Curve titanium GXR has been tested heavily on gravel adventures worldwide. Across South America, New Zealand, Switzerland, Swaziland, and more, the Curve squad has traversed the globe on this magnificent bicycle.
Originally a playful jab at the bike industry's bike naming terminologies, the name “Kevin” soon caught on, and we couldn’t resist making it official. Kevin, the reliable Aussie all-rounder, is here to stay as a permanent nickname for our beloved GXR.
-

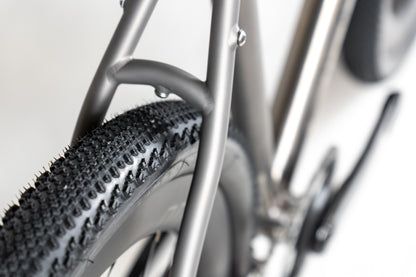

Wide Tyre Clearance

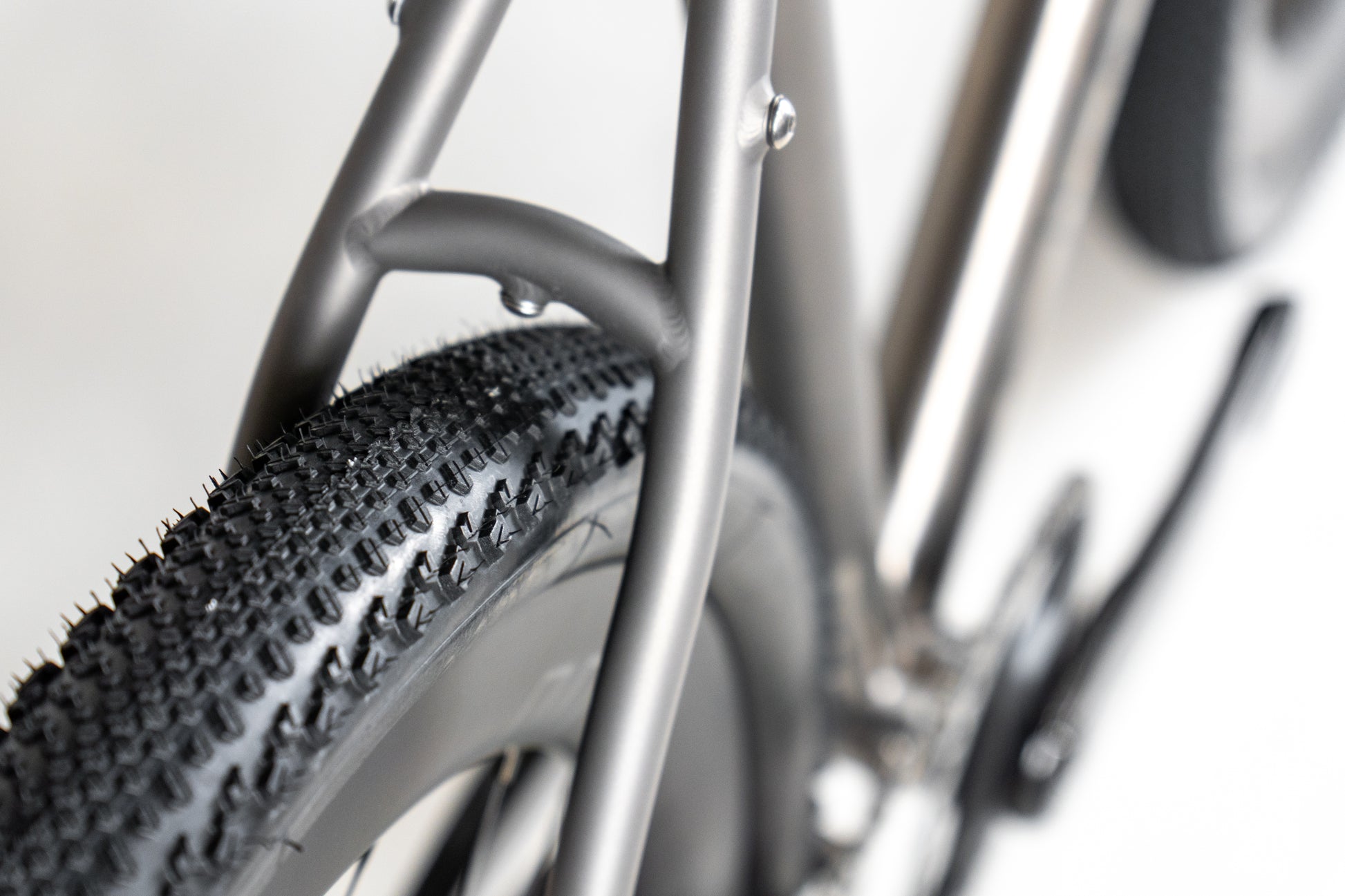

The GXR4 has been designed with gravel cycling versatility in mind. While the GXR4 geometry is optimised for 700c x 44mm tyres, you can go as wide as 50 mm tyres on 700c wheels or 29 x 2.0" on our Dirt Hoops.
With wider tyres being all the craze currently, Kev is set up ready to crush almost any trail!
-
Ready for Adventure

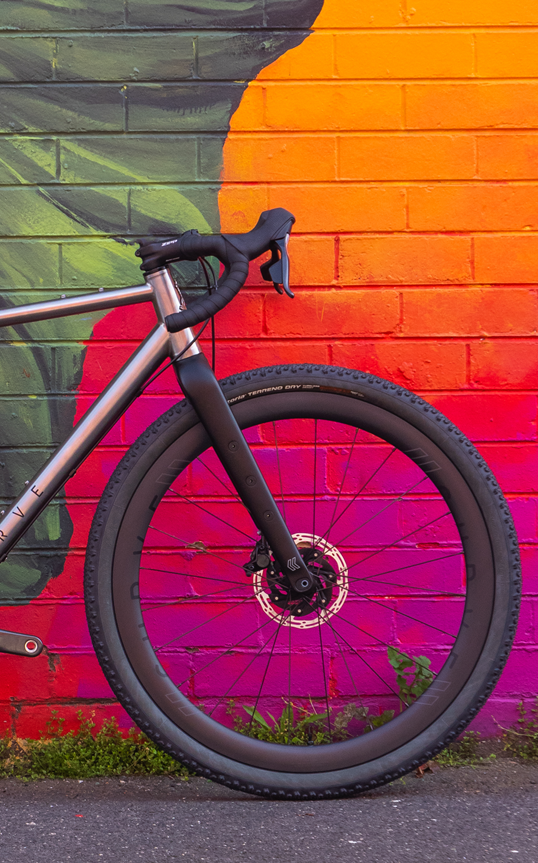

Our Ride 415 VGM fork has taken load carrying to the next level, with a 8 kg rating on each fork leg. That’s a total carrying capacity of 16 kg. Featuring three cleverly designed mounts on each fork leg, the Ride 415 VGM fork can accommodate anything from extra water bottles, our Rocket Pooches, or other micro-pannier or fork-specific bags.

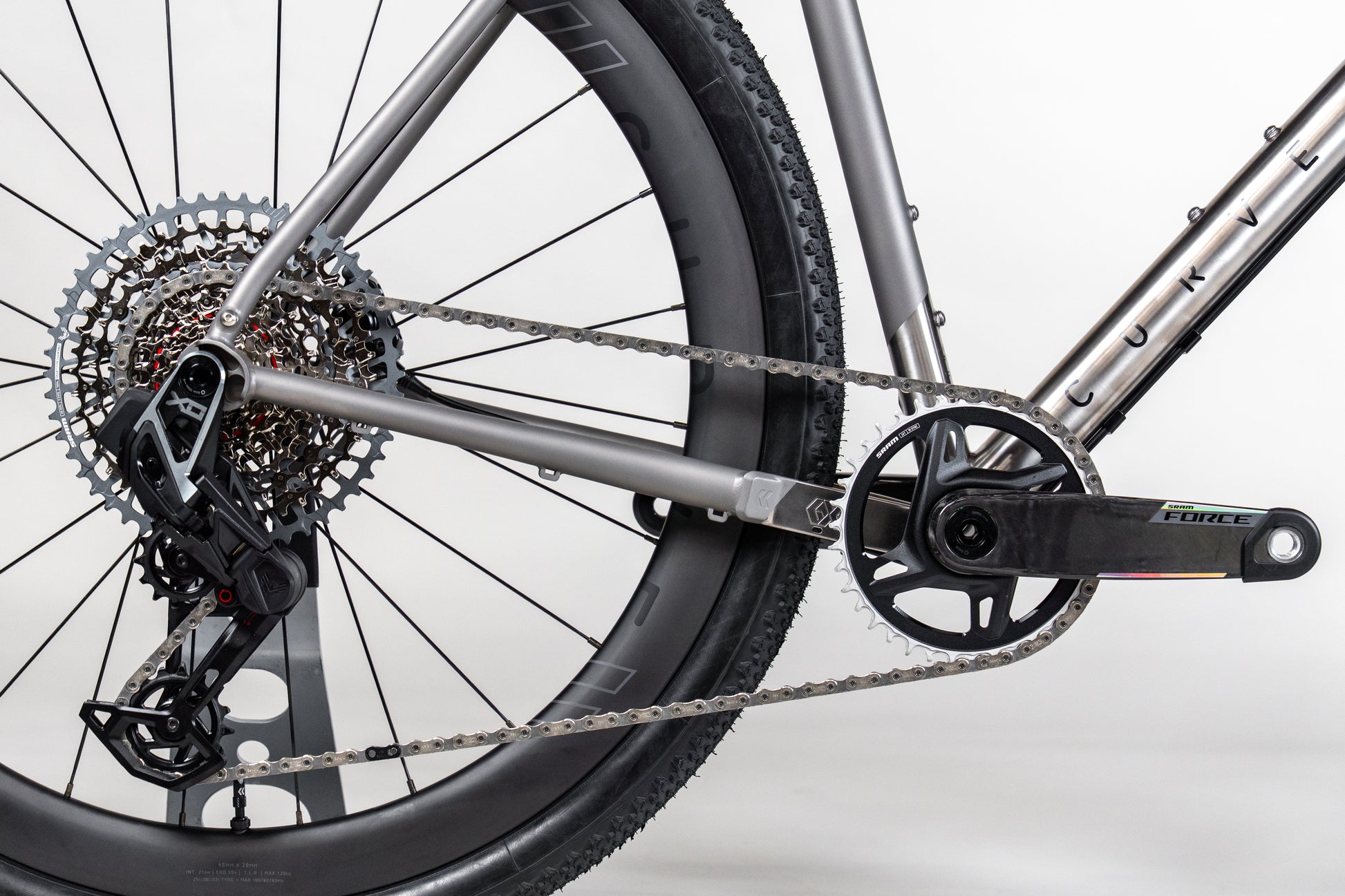

While we favour 1x drivetrains, Kevin can be set up with a 2x drivetrain without hassle. With SRAM UDH compatible dropouts, Kevin is able to handle the widest range of groupset options currently available.
-
More Mounting Points

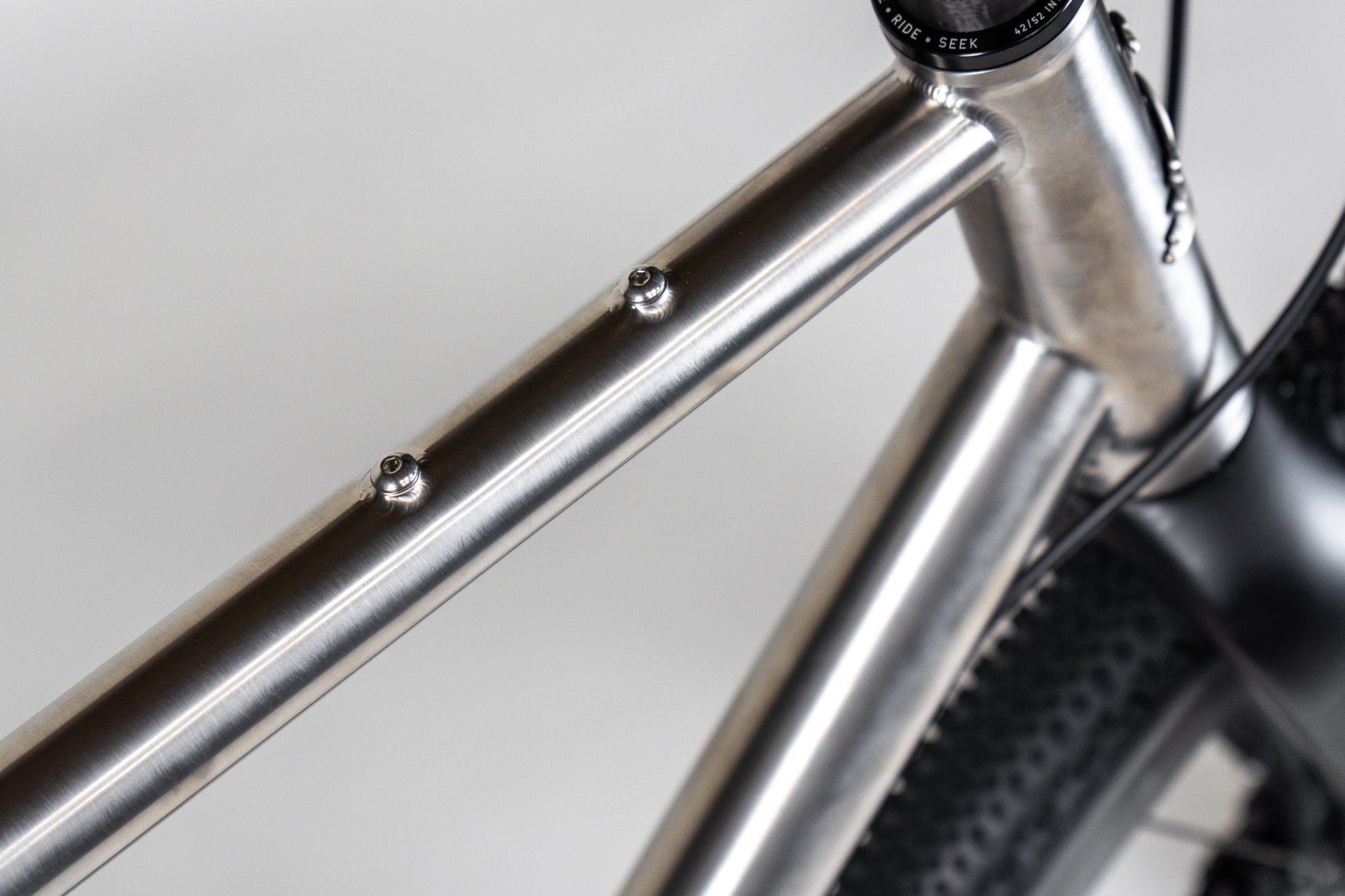

The Curve Kevin comes equipped with rear rack mounts, fender mounts, 3 x bidon mounts, and top tube “bento mounts”. With extra tyre clearance, and a comparatively long wheelbase for the gravel genre which offers a more stable platform, Kevin is ready for epic day rides or multi-day bikepacking adventures, not just smooth gravel cruising.
There is ample room for bikepacking bags on all frameset sizes. To make sure current, prospective or custom bagging fits your frame size please see our Bagmaker Drawing page.
GXR4 Specifications
Frameset

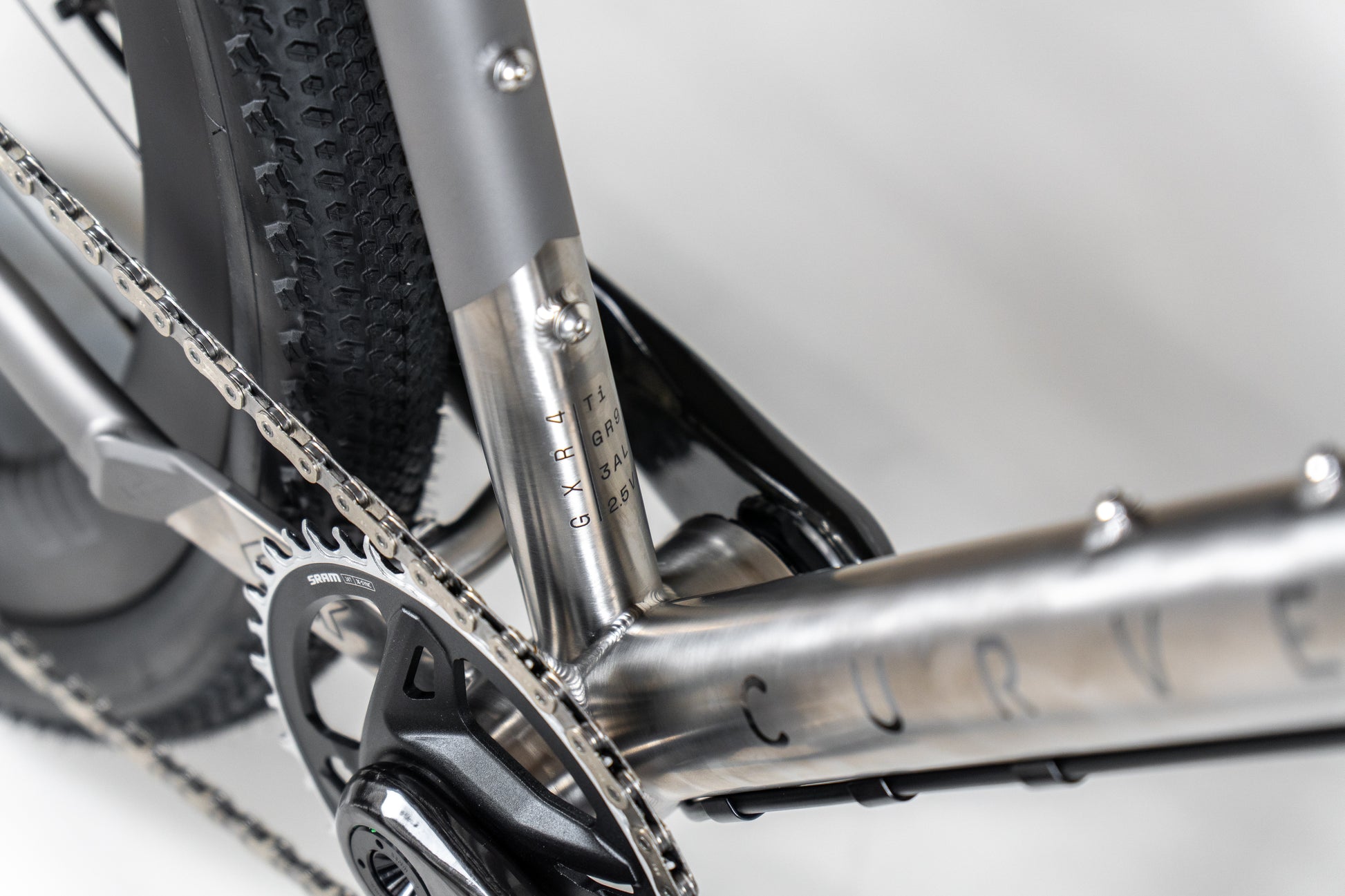

Frame - Titanium Curve GXR4. At the core of each frame is a 3Al - 2.5V Grade 9 aerospace grade titanium tubeset. This grade is optimal for bicycle frames and chosen for its fine balance of stiffness, compliance and durability.

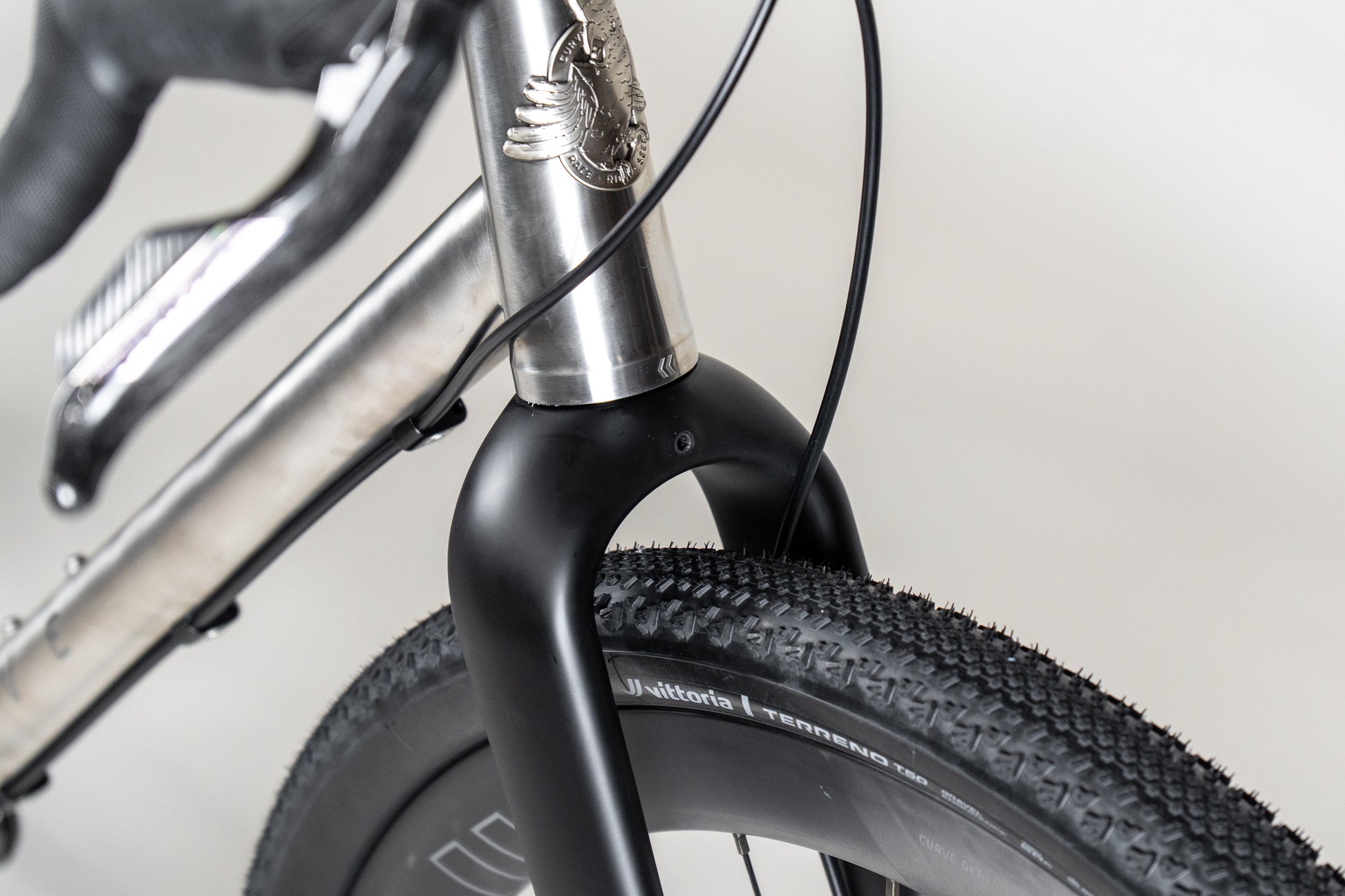

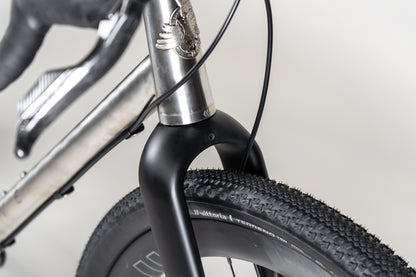

Fork - Curve Ride 415 VGM carbon fork
Headset - Curve Integrated 42/52 mm semi-internal
Seat Clamp - Curve Alloy 31.8 mm
Other - Curve Cocky Headbadge, 12 mm Front & Rear Axles, spare SRAM UDH derailleur hanger
Groupset Options
SRAM Force E1 X0 T-Type

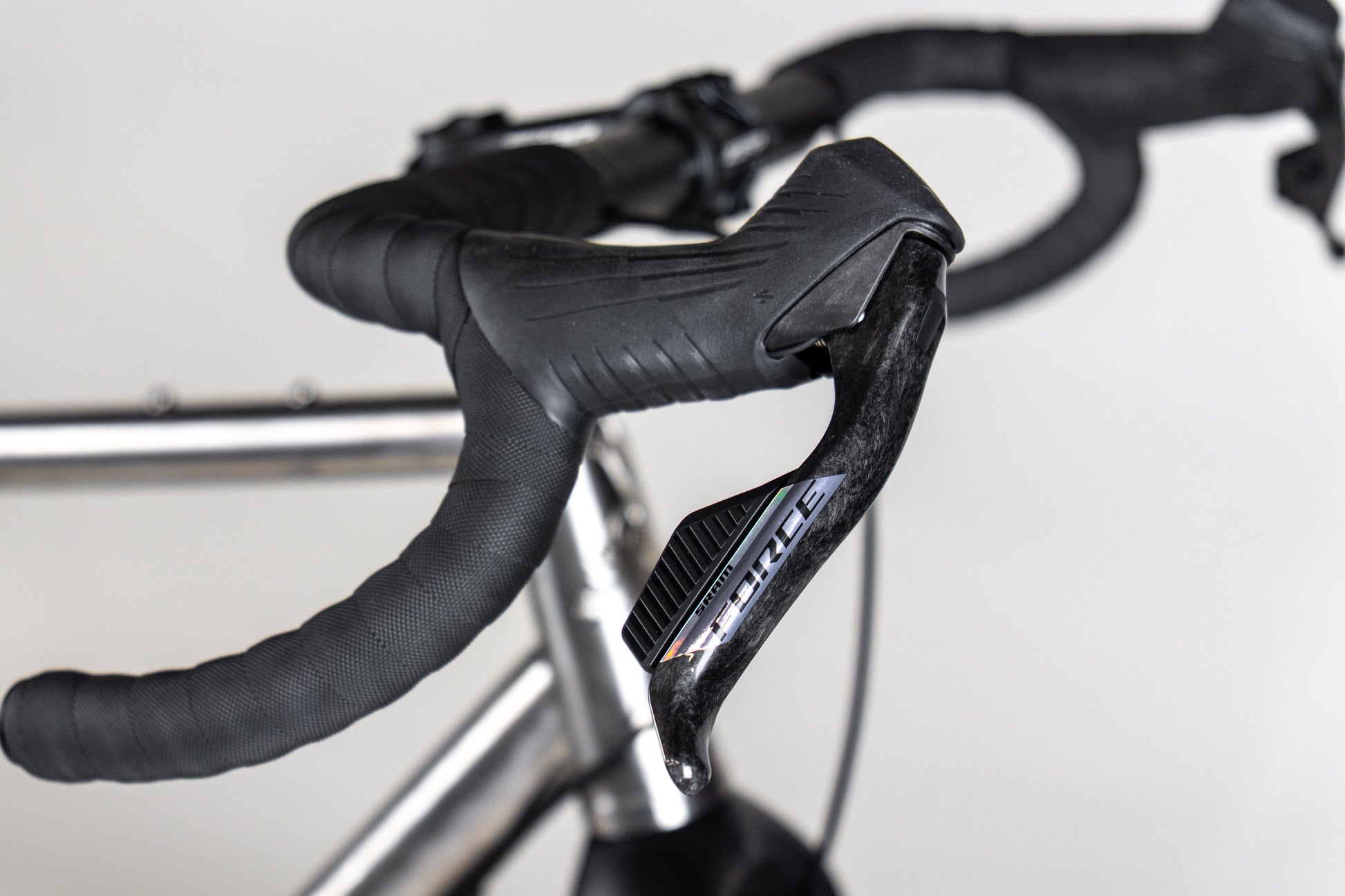

Shifter/Levers - Force E1 AXS 12 sp - LHR / RHF
Brakes - Force Flat Mount Disc // Centrelock Rotors 160 mm
Crank - Force E1 WIDE DUB - 38t | XXS-SM: 165 mm | MD: 170 mm | LG-XXL: 175mm
Bottom Bracket - T47 DUB internal 85.5 mm
Rear Derailleur - X0 T-Type 12 sp
Cassette - XS 1275 T-Type 10-52t
Chain - GX T-Type 12 sp
-
SRAM Rival E1 GX T-Type
Shifter/Levers - Rival E1 AXS 1x12 sp - LHR / RHF
Brakes - Rival Flat Mount Disc // Centrelock Rotors 160 mm
Crank - Rival E1 WIDE DUB - 38t | XXS-SM: 165 mm | M: 170 mm | LG–XXL: 175 mm
Bottom Bracket - T47 DUB internal 85.5 mm
Rear Derailleur - GX T-Type 12 sp
Cassette - XS 1275 T-Type 10-52t
Chain - GX T-Type 12 sp
Wheels

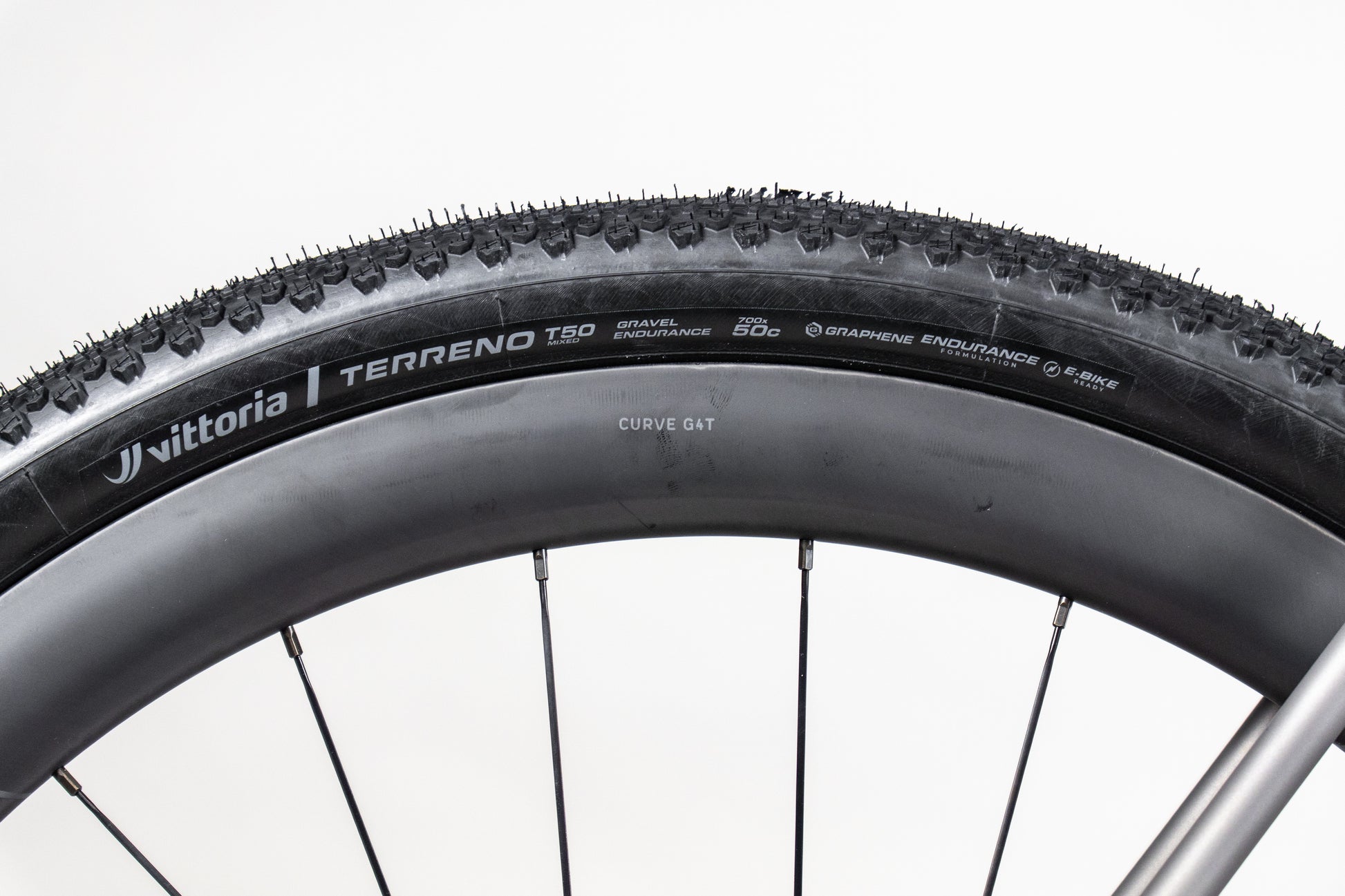

G4T 45 - 700C
Curve carbon all-road wheels:
- 21 mm internal, 28 mm external, 45 mm deep
- Hub: DT Swiss 350 24H Centrelock
- Spokes & Nipples: Sapim CX Ray spokes and brass nipples
Dirt Hoops - 29"
Curve carbon off-road wheels:
- 30 mm internal, 35 mm external, 27 mm deep
- Hub: DT Swiss 350 28H Centrelock
- Spokes & Nipples: Sapim CX Ray spokes and brass nipples
Finishing Kit
Bars - Curve Walmer Bar
XXS: 43 | XS-LG: 46 | XL–XXL: 50
Stem - Zipp Service Course
XXS–S: 70 mm | M–L: 80 mm | XL-XXL: 90 mm
Seatpost - Zipp SC 0 Setback 27.2 mm
Saddle - Prologo Dimension 143
Tyres - Vittoria Mezcal Gravel Endurance - 700c x 44 mm
Bar Tape - Curve black anti-shock
Please Note: Spec subject to change according to availability
