FORK KIT - RACE 380 inc Plugs & Inserts

Name: FORK KIT - RACE 380 inc Plugs & Inserts
Brand: Curve Cycling
SKU: CV-R380-RP
Price: 999.0 AUD
Availability: InStock

$999.00 AUD

~~$0.00 AUD~~ $999.00 AUD

Sale Contact Us for Info

Customers outside Australia may be charged import fees (duties, taxes, etc) by local customs authorities upon delivery. Please see our shipping policy for more information.
European Union customers: please visit curvecycling.eu for local pricing.

Product variants

Quantity

Enquire

For info on availability, please contact sales@curvecycling.com,
call us on 03 9088 0274.

Alternatively, Enquire Now.

Size Guide

Shipping

Shipping for Framesets, Complete Bikes, Forks, Wheelsets, Bars and Rocket Pooches is included in the sales price.

All other products are subject to shipping charges calculated at checkout. See our Shipping Policy for further details.

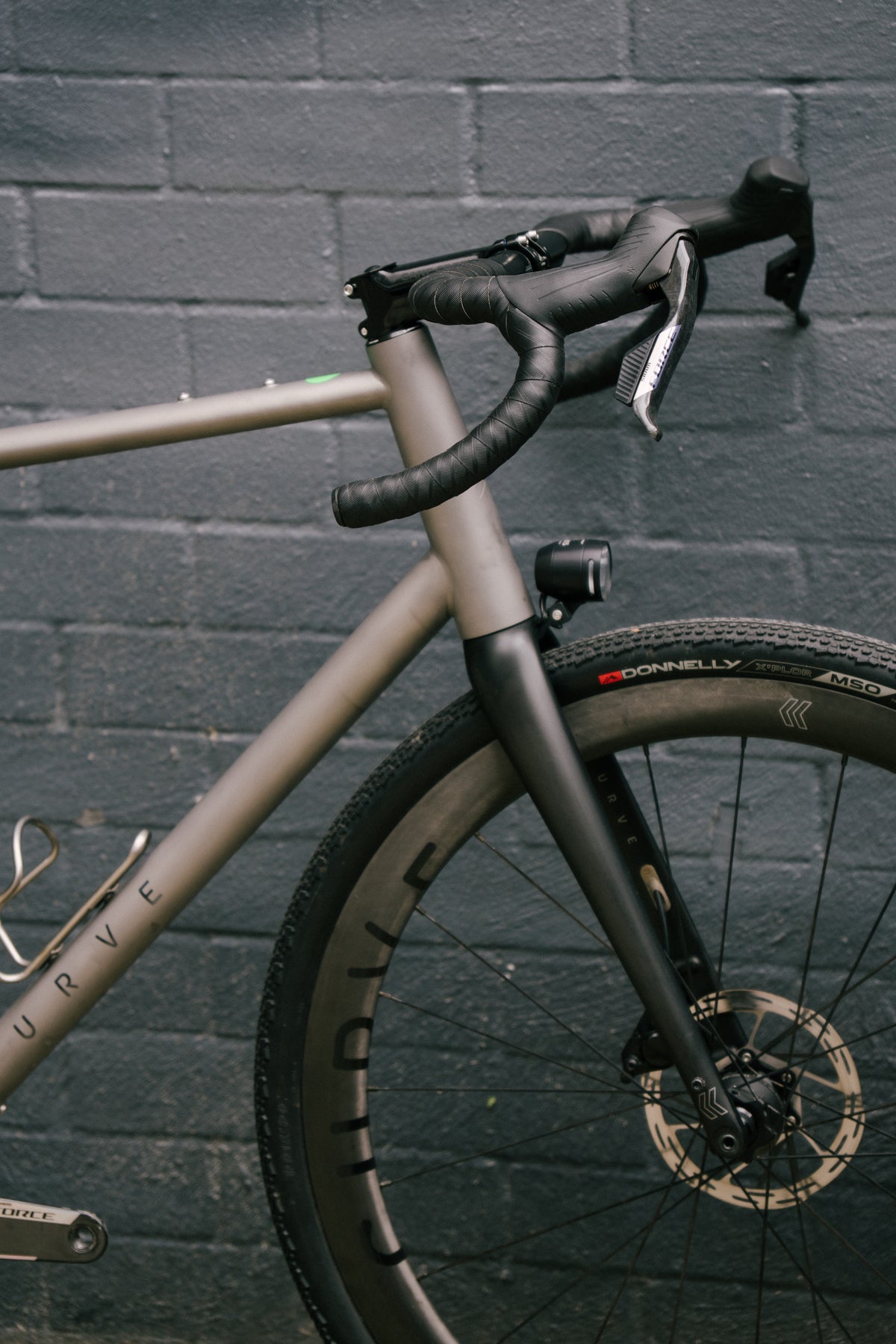

The Ultra+ is built around the impressive new Race 380 fork. Don’t let the elegant execution fool you; this is a highly-capable fork and perhaps our most advanced product yet with a list of features too long to document in full here: internal or semi-internal brake hose routing, internal routing options for dynamo lighting systems, fender compatible, crown-mounted light compatible (with in-and-out holes for the dynamo light systems that need them), and an opening low on the steerer allowing more routing flexibility including discreet rear dynamo light setups. The Race 380 has a sleek low-crown design, a very long steerer, gravel-standard testing, and a hard-to-believe weight for that level of capability. The 3D-printed titanium hose entry port is also a nice finishing touch.

View full details

Fully Internal Dynamo Routing

A lot of the development work went into routing. The Race 380 can be set up with either internal or semi-internal brake hose routing, and it includes internal routing options for dynamo lighting systems with a clear path up through the fork legs and into the steerer. An additional opening low on the steerer provides further flexibility, including the option of discreet internal routing for rear dynamo lighting.

The routing ports have also been neatly integrated into the fork design. The brake hose enters through a 3D-printed titanium port, while unused openings can be finished with purpose-made 3D-printed covers.

A VERY Capable Fork!

The Race 380 uses a sleek low-profile crown and 380 mm axle-to-crown length, with clearance for tyres up to 45 mm without fenders or 40 mm with them. It has been tested to gravel standards, while keeping weight impressively low for a fork with this level of functionality.

A 375 mm steerer gives frame builders and riders plenty of room to work with, including on the largest frame sizes. The fork uses a 1.5" tapered steerer with a 45° integrated crown race and a 47 mm offset.

Tech Specs & FAQs

Product Info

Key geometry parameters: 380 mm axle-to-crown and 47 mm offset
Internal or semi-internal brake hose routing
Internal dynamo cable routing
Routing provision for front and rear dynamo lighting

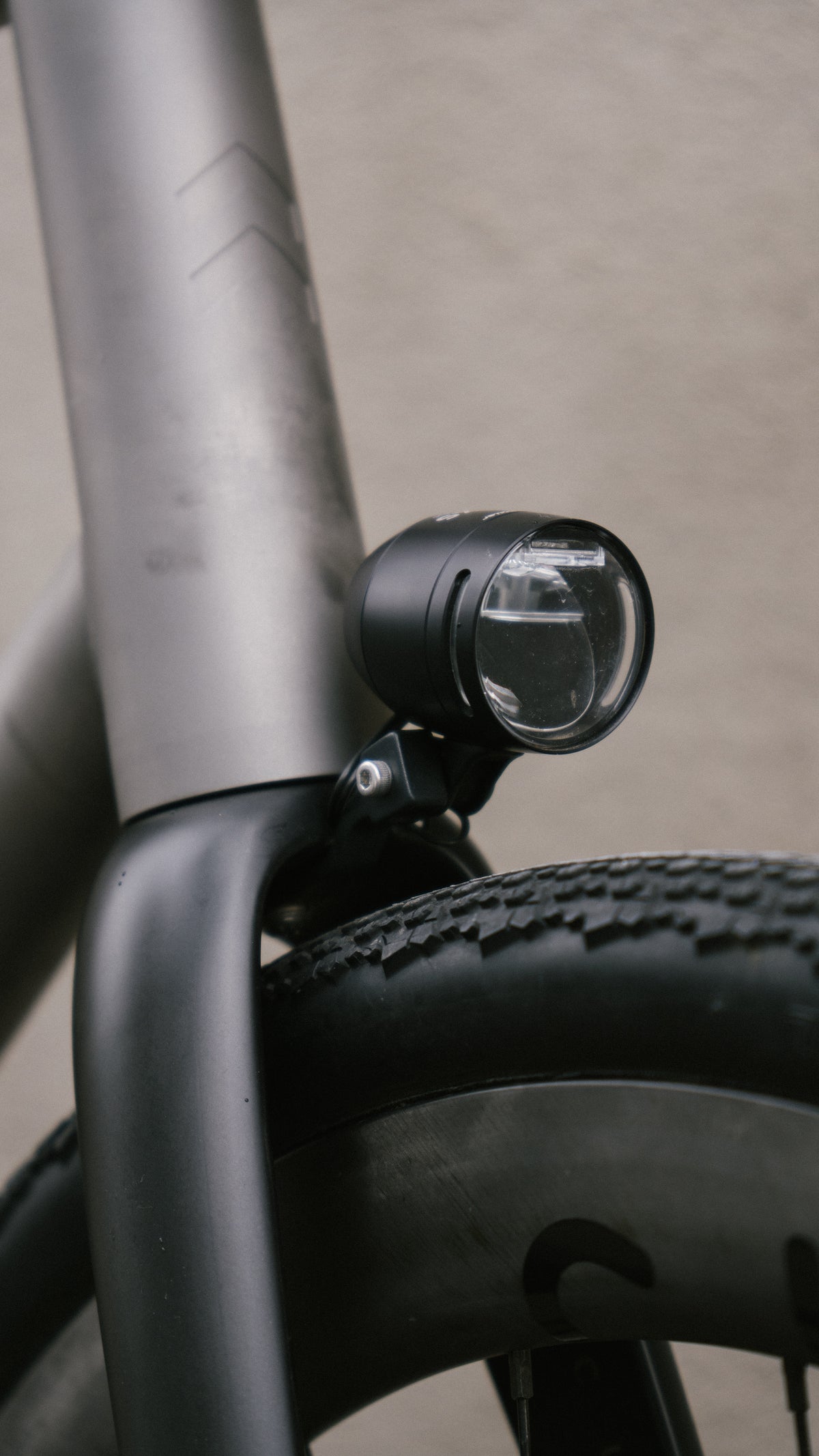

Crown-mounted light compatibility
In-and-out cable openings on the crown for dynamo light systems that require them
Ruggedised undercrown mounting point for dynamo light mounting
3D-printed titanium brake hose entry port
3D-printed covers for unused routing ports
Fender compatibility
Flush-mount thru-axle head
Super long 375 mm steerer
Clearance for 45 mm tyres without fenders, and 40 mm tyres with fenders
Gravel-standard testing
1.5" tapered steerer with a 45° integrated crown race
Sample weight 430 g (with full 375 mm steerer but without axle).
Intended Use & Warranty: Condition 2 - See definitions & Warranty Policy HERE
