Name: Dropout Insert Kit
Brand: Curve Cycling
SKU: CV-SD-TA148FMSSP
Price: 179.0 AUD
Availability: InStock

$179.00 AUD

Sale Contact Us for Info

Customers outside Australia & European Union may be charged import fees (duties, taxes, etc) by local customs authorities upon delivery. Please see our shipping policy for more information.
.

Axle Spacing Thru-Axle 12x148mm [BOOST] Thru-Axle 12x142mm Quick-Release 135mm [ROHLOFF]

Brake Mount [160] Flat-Mount Post-Mount

Configuration Single-Speed / Belt-Drive Universal Derailleur Hanger [UDH] / [T-TYPE] Conventional Derailleur Hanger Rohloff

Product variants

Quantity

This is a Sample Product Title

Was $200.00 Now $100.00

Enquire

For info on availability, please contact sales@curvecycling.com,
call us on 03 9088 0274.

Alternatively, Enquire Now.

Shipping

Free International Shipping for all Framesets, Complete Bikes, Forks, Wheelsets, Bars and Rocket Pooches is included in the sales price (*excludes Belgie DISC Ultegra)

All other products are subject to shipping charges calculated at checkout. See our Shipping Policy for further details.

In a move to streamline customisation for our Uprock V2, we've made sliding multi-dropouts and a belt-drive split the new standard.
By changing the dropout inserts you can transform your ride.

While the stock Uprock V2 comes with SRAM UDH / 160 mm post-mount brake & boost spacing inserts, we have developed a wide range of inserts to cover most drivetrain, disc brake and axle spacing options.

Want hangerless singlespeed inserts? No problem. Rohloff belt-drive? No issues at all. How about SRAM transmission derailleurs? Fine with us!

Available configurations:

TA148 \| FM160 \| T-Type Available Now	Allows the use of either a UDH hanger and regular derailleur, or a SRAM Transmission hangerless derailleur. Allows the use of flat-mount disc brakes with a 160 mm rotor. Boost only (148 mm width).
TA148 \| PM160 \| SINGLESPEED Available Now	Single-Speed or Belt-Drive configuration. Allows the use of post-mount disc brakes with a 160 mm rotor.
TA148 \| FM160 \| SINGLESPEED Available Now	Single-Speed or Belt-Drive configuration. Allows the use of flat-mount disc brakes with a 160 mm rotor.

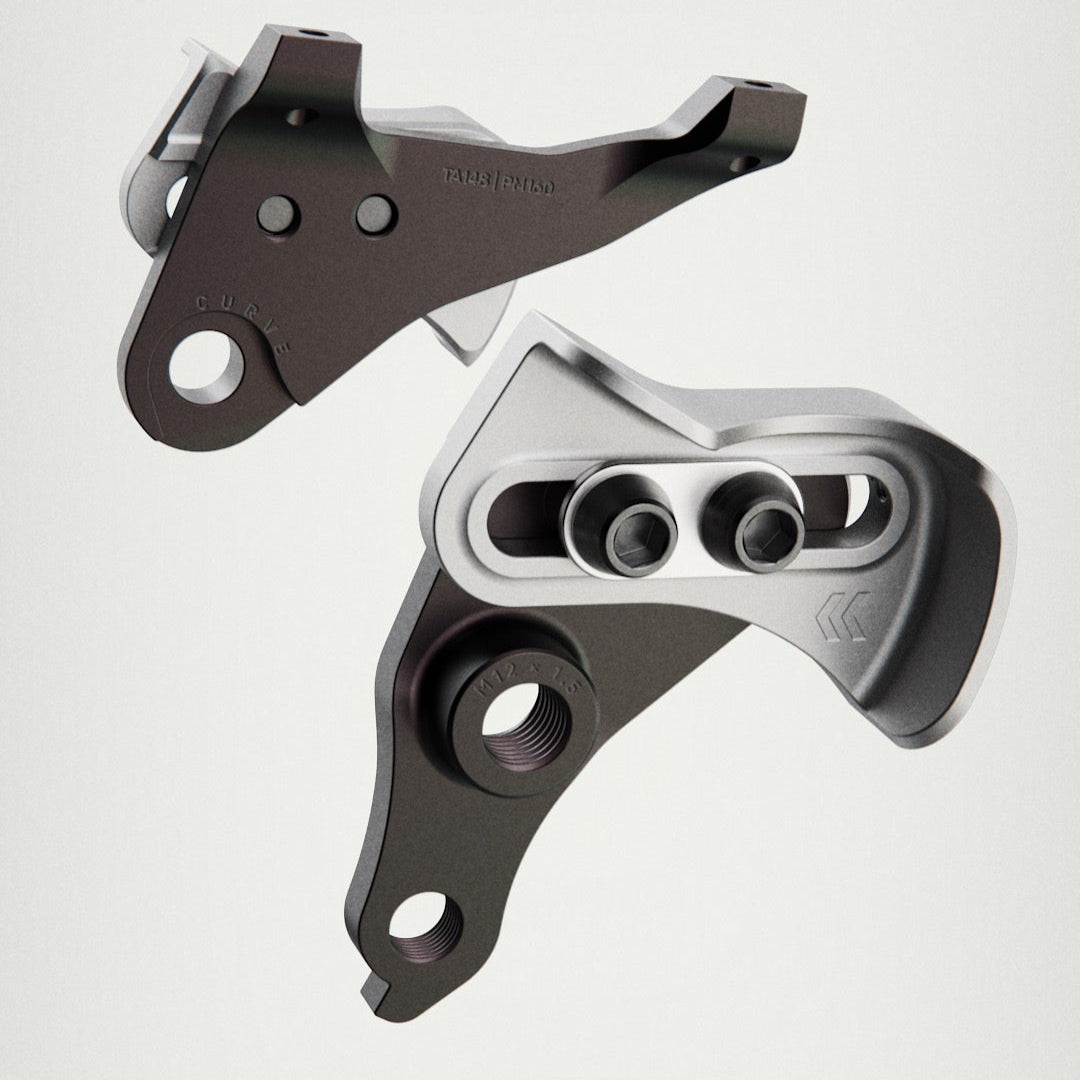

TA148 \| PM160 Special Order	Incorporates a conventional derailleur hanger for 12 x 148mm (boost spacing) thru-axle hubs. Allows the use of post-mount disc brakes with a 160 mm rotor. Also available without a hanger for singlespeed or belt drive.
TA142 \| PM160 Special Order	Incorporates a conventional derailleur hanger for 12 x 142mm (non-boost spacing) thru-axle hubs. Allows the use of post-mount disc brakes with a 160 mm rotor. Also available without a hanger for singlespeed or belt drive.
TA142 \| FM160 Special Order	Incorporates a conventional derailleur hanger for 12 x 142mm (non-boost spacing) thru-axle hubs. Allows the use of flat-mount disc brakes with a 160 mm rotor. Also available without a hanger for singlespeed or belt drive.

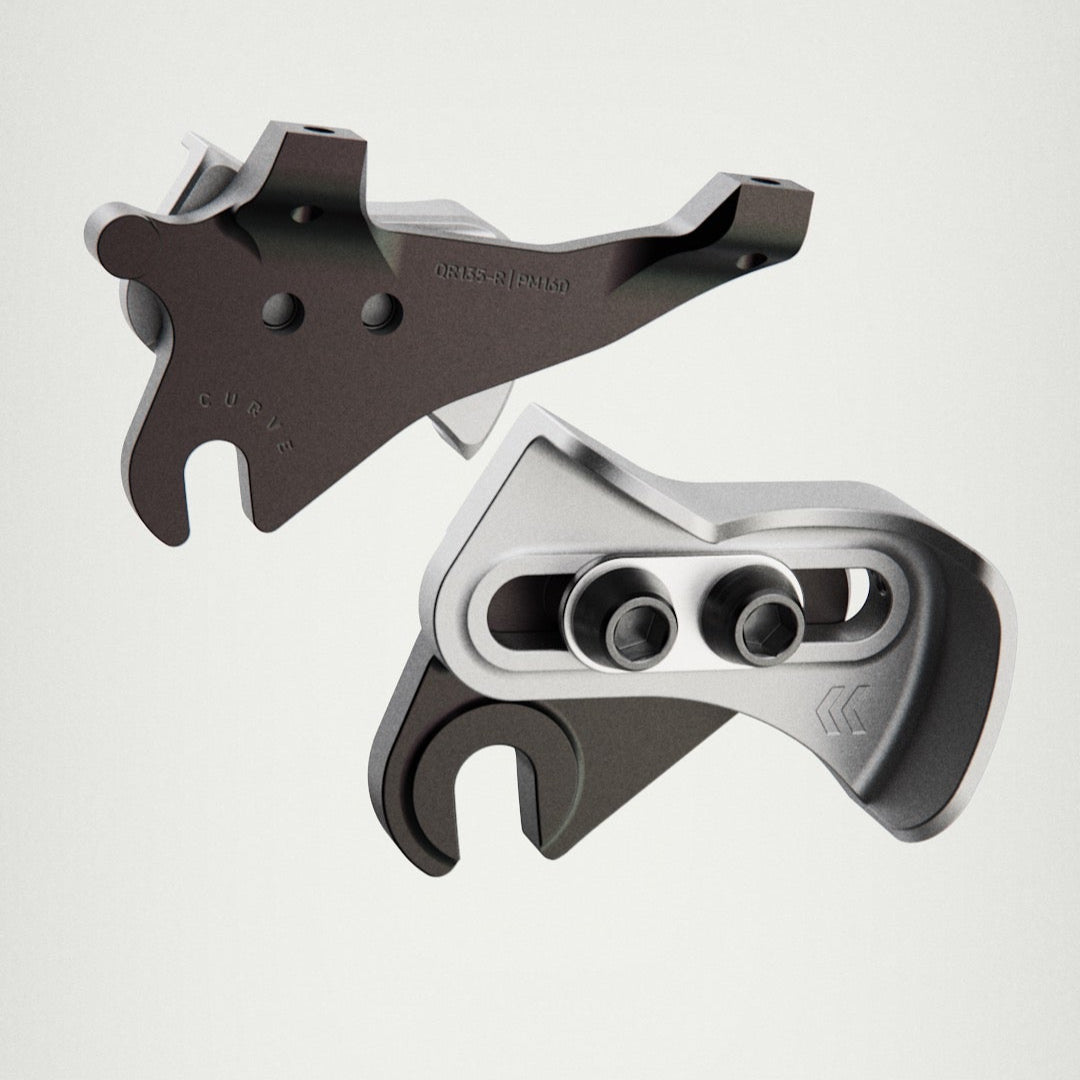

QR135 \| PM160 Special Order	Incorporates a conventional derailleur hanger for quick-release hubs (135mm spacing). Allows the use of post-mount disc brakes with a 160 mm rotor. Rohloff-specific option available for use together with an OEM2 Axleplate.
QR135 \| FM160 Available Now	Incorporates a conventional derailleur hanger for quick-release hubs (135mm spacing). Allows the use of flat-mount disc brakes with a 160 mm rotor. Rohloff-specific option available for use together with an OEM2 Axleplate.
