DownRock Frameset
DownRock Frameset
Couldn't load pickup availability
Enquire
Enquire
For info on availability, please contact sales@curvecycling.com,
call us on 03 9088 0274.
Alternatively, Enquire Now.
Geometry
Geometry
You can find geometry charts for all our current frame models HERE.
Shipping
Shipping
Free International Shipping for all Framesets, Complete Bikes, Forks, Wheelsets, Bars and Rocket Pooches is included in the sales price (*excludes Belgie DISC Ultegra)
All other products are subject to shipping charges calculated at checkout. See our Shipping Policy for further details.
FAQs
FAQs
Check HERE for further info regarding custom paint, bike set up and more.
| I want to attach bags. What will it do to the frame finish? |
Curve's steel frames are finished with high-quality and durable paint, but the paint is not unaffected by rubbing from bike bags or rock strikes etc. If you want to keep your paint looking pristine, we recommend that you use some kind of protective film - especially in the high-wear areas where bag straps are in direct contact with the frame. Stock Ti frames are not painted, but bag rub will affect the surface finish. The lighter, brushed, finish can be refreshed using a fine abrasive pad, but the darker blasted finish can only be refinished by media blasting. To keep your Ti frame looking pristine, we recommend using protective film. |
| I want to get a custom frame bag made. Can you give me the frame dimensions? | Of course! Have a look at our bagmaker page HERE where you can download full-scale PDFs showing the internal dimensions of all our frame models. |
Drop It Like It’s hot
The seat tubes are short in order to accommodate the latest generation of long travel dropper posts (170 mm - 210 mm). This is especially advantageous on a hardtail as your legs act as the rear suspension.
Balanced
Bottle cage mounts are placed low inside the front triangle and underneath the downtube to maintain the lowest possible centre of gravity and to give room in the front triangle for a frame bag if required.
Scaled Geometry
Front and rear centres are scaled proportionally across the sizes in order to provide the same ride and handling characteristics across a range of rider heights. This is especially important for riders with longer inseams as it prevents the saddle from sitting too far behind above the rear wheel.
Re-route it
Full external Cable routing for ease of maintenance, quiet operation and maximum frame integrity (Seatpost stealth routing for dropper)
Frameset Compatibility

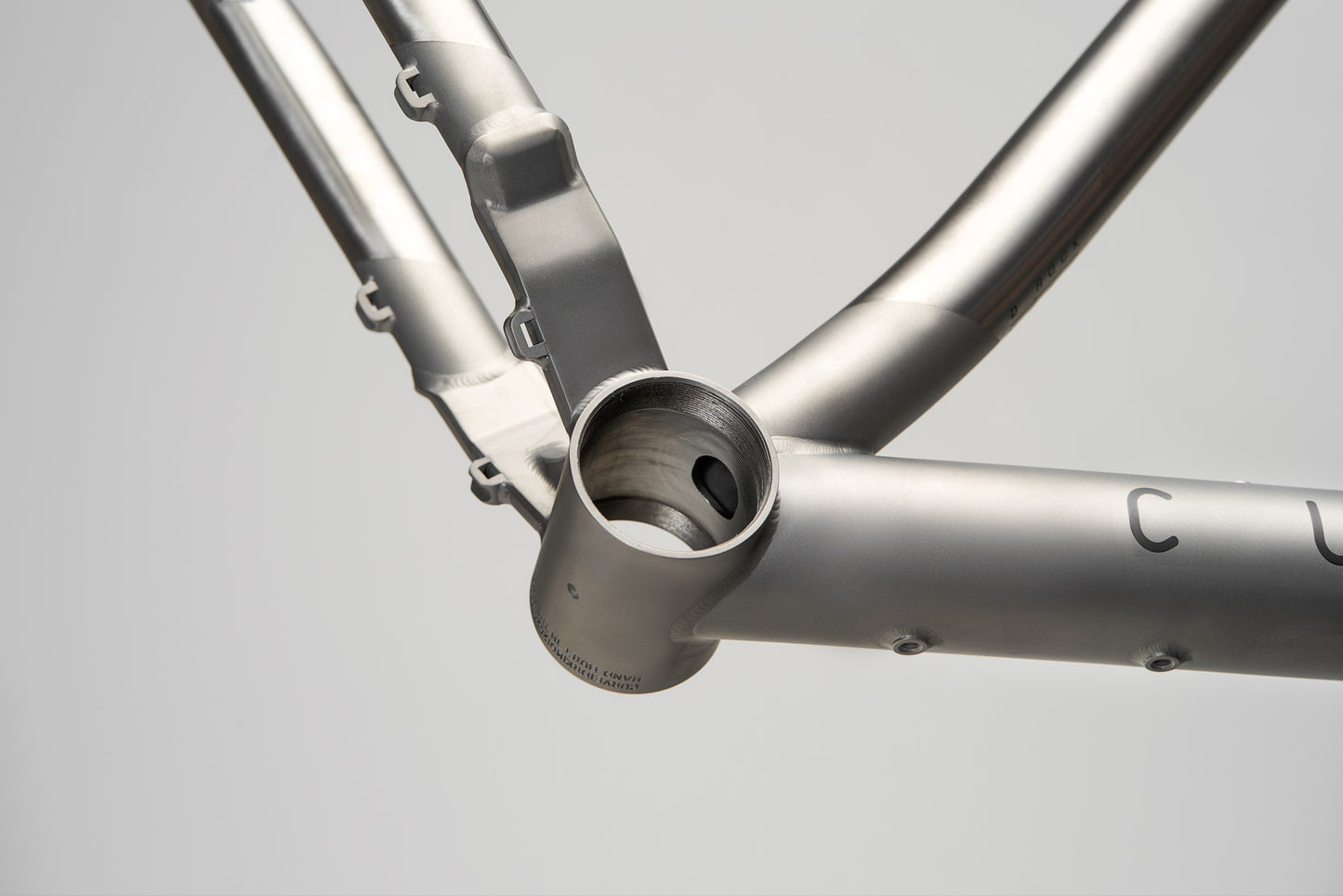

| Bottom Bracket | 73 mm T47 BB |
| Brakes | Post-mount disc, 180 mm (rear) |
| Drivetrain | 1x only (no front derailleurs), Max chainring 34T MD-XL, 32T SM frame 52 mm (boost) chainline |
| Fork | Compatible with 1⅛" - 1.5" tapered steerer. Frame optimised for 130 mm travel forks, compatible up to 150 mm |
| Headtube | Tapered 56/44 Zero Stack Headtube |
| Hub spacing | Boost 12x148 mm rear dropout, RockShox Pike fork is Boost 15x110 mm. |
| Mounts | 2x Bottle Cage mounts |
| Cable routing | Full external cable routing Seatpost stealth routing for dropper |
| Seatpost | 31.6 seatpost, 34.9 seat clamp. Optimised around 170-210 mm dropper seatposts. |
| Tyres | 82mm tyre clearance for up to 29" x 2.6” (66 mm) |
Frameset Includes

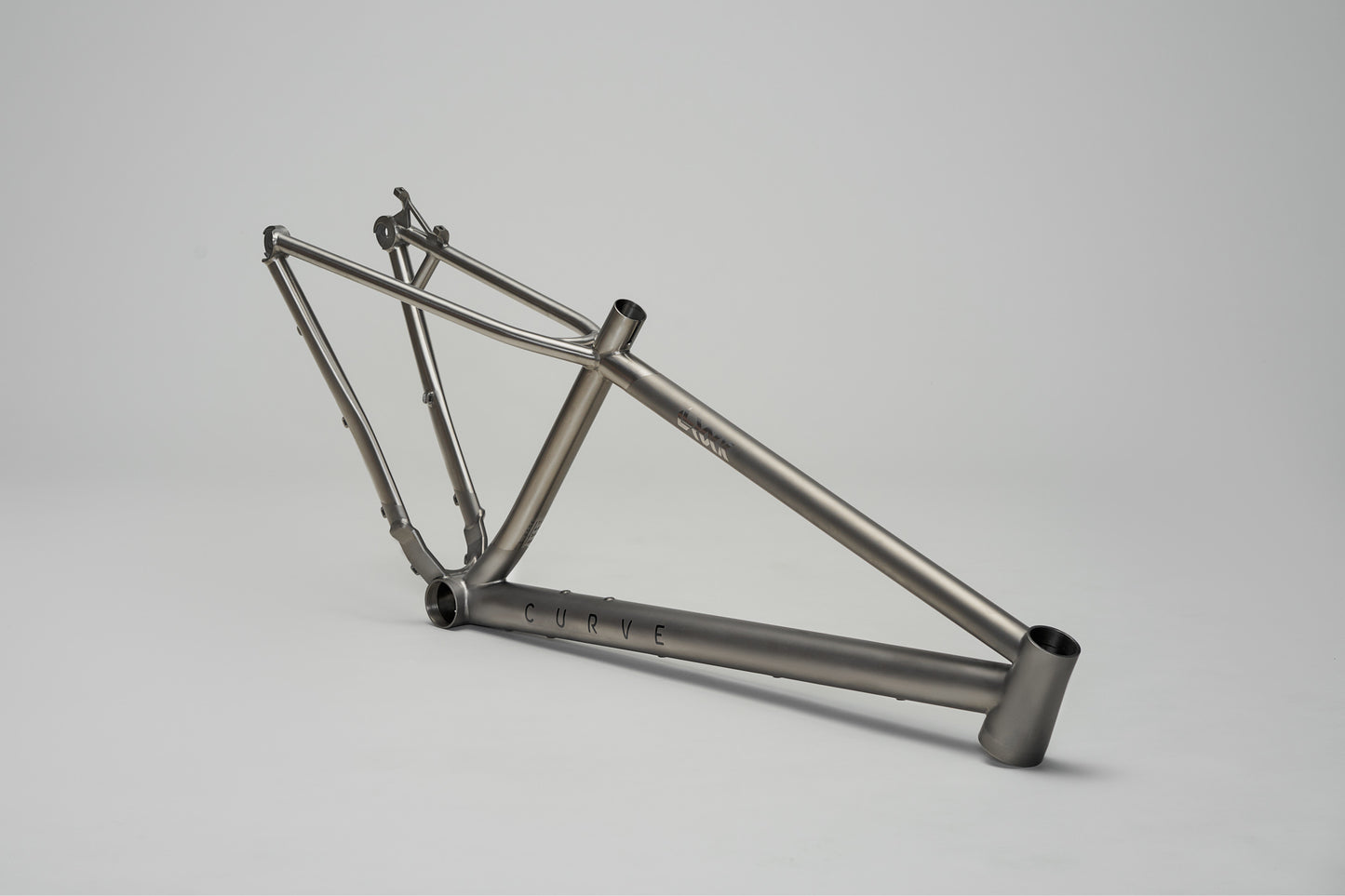

| Frame | Curve Titanium Downrock Hardtail MTB |
| Fork | RockShox Pike Ultimate Charger 2 RC2 29" Boost™ 15X110 MXL Stealth Debonair 130 Gloss Silver |
| Headset | Curve 44/56 (S.H.I.S.: ZS44/28.6 | ZS56/40) |
| Seat Clamp | Curve Alloy 34.9 mm |
| Seat Post | RockShox Reverb Stealth 31.6 mm, 175/200 mm Travel |
If you are building your Curve frameset with a self-supplied groupset, please see the specification guid via the link below to ensure the necessary parts are sufficiently compatible with our framesets.
The specification details may change over time. Please check HERE for the latest version.
