Elegant Internal Routing to Rejuvenate Your Belgie Disc, Ultra or AIR
Integrated internal routing is now available on your existing Belgie Disc, Belgie Ultra or Belgie AIR with 1x12 wireless electronic groupsets. We are able to offer this stunning upgrade thanks to the innovative Columbus Trittico cockpit system. This offer is available to customers in Melbourne, Australia or those who can ship their bike to Curve's Melbourne HQ to have the upgrade work completed by our expert workshop staff.
The timeless qualities of titanium mean that your beloved titanium Curve bike is a bike for life. Your Curve might have entered your life before the clean finish of integrated fully internal routing was possible. Now you can rejuvenate your ride with the Columbus Trittico system and upgrade to a stunning, clean cockpit with the brake hoses neatly hidden.
High Performance With Minimalist Italian Design
Trittico is the new family of carbon fiber bicycle cockpit components designed by Columbus. All Trittico components are characterized by state-of-the-art performance, weight, reliability and a stunning yet minimalist aesthetic, perfectly suited to finish a clean internally routed bike.
Columbus has a long history of supplying artisanal frame builders with the materials to complete their work. Curve has relied on high end steel tubing from Colubus for many years. We are proud to showcase this next generation of cockpit products from Columbus that allows internal routing while maintaining the clean aesthetic offered by a tapered head tube.
With close-matching geometry to the Curve Race 370 fork, stunning overall ride quality, and clean hose-hidden finish, the Columbus Trittico cockpit system is a perfect addition to the Belgie Disc, Ultra or AIR.
Upgrade Options
We work with Candy Factory Paintworks in Muckleford, Victoria to create dream bikes with fully personalised artwork. Get in touch to arrange custom paint for your new Columbus Trittico forks and and take your cockpit upgrade to the next level.
With a move to integrated internal routing comes more complicated maintenance. Each time the headsets need replacing, hoses need to be cut. To improve performance and lengthen the time between maintenance contact us to discuss headset bearing improvement options as part of your upgrade.
The Details
Currently available to Melbourne customers only, or customers able to ship their bikes to Curve’s Melbourne Workshop.
What's Included?
| Handlebar and Stem |
Separate Columbus Trittico Handlebar and Stem. We recommend the following: - Frame size <= 52: 90 mm stem, 40 cm bar - Frame sizes 53 - 56: 100 mm stem, 40 mm bar - Frame sizes >= 58: 110 mm stem, 42 mm bar |
| Other Inclusions |
- Columbus Trittico Fork - painted by Candy Factory Paintworks - Columbus Trittico Race-Spoon: CNC-machined aluminium mount for cycling lights, computers and cameras - New brake hoses and brake fluid, as well as brake bleed to finish set up - New bar tape - Workshop time to remove your old cockpit and install the new Columbus Trittico cockpit |
Specifications
| Frame Compatibility |
- Belgie Disc v3, Belgie Ultra and Belgie AIR frames - Please note that the rear brake hose will not pass through the bottom bracket, rather it will exit the down tube and pass on the outside of the bottom bracket, entering the frame again at the chainstay. |
| Groupset Compatibility | 1x12 wireless electronic groupsets. We can arrange a new groupset as part of the upgrade process if needed |
|
Columbus Trittico Handlebar |
- Width (hoods): 40 cm – 42 cm – 44 cm - Width (drops): 42.7 cm – 44.7 cm – 46.7 cm - Reach: 71 mm - Drop: 128 mm - Outsweep: 4° - Weight: 243g (42 cm size) |
|
Columbus Trittico Stem |
- Sizes (sleeve 0mm): 90 mm – 100 mm – 110 mm – 120 mm – 130 mm - Angle: -8° - Weight: 176g (110 mm size) - Adjustment sleeve +5mm: resulting lengths: 95 mm – 105 mm – 115 mm – 125 mm – 135 mm - Adjustment sleeve -5°: resulting angle: -13° |
|
Columbus Trittico Fork |
- Axle-Crown: 367 mm - Steerer length: 350 mm - Tyre clearance: 700c x 32 mm - Axle: 100 mm x 12 mm - Offset: 45 mm - Weight: 392+/-10 g - Painted in Muckleford, Victoria at Candy Factory Paintworks |
|

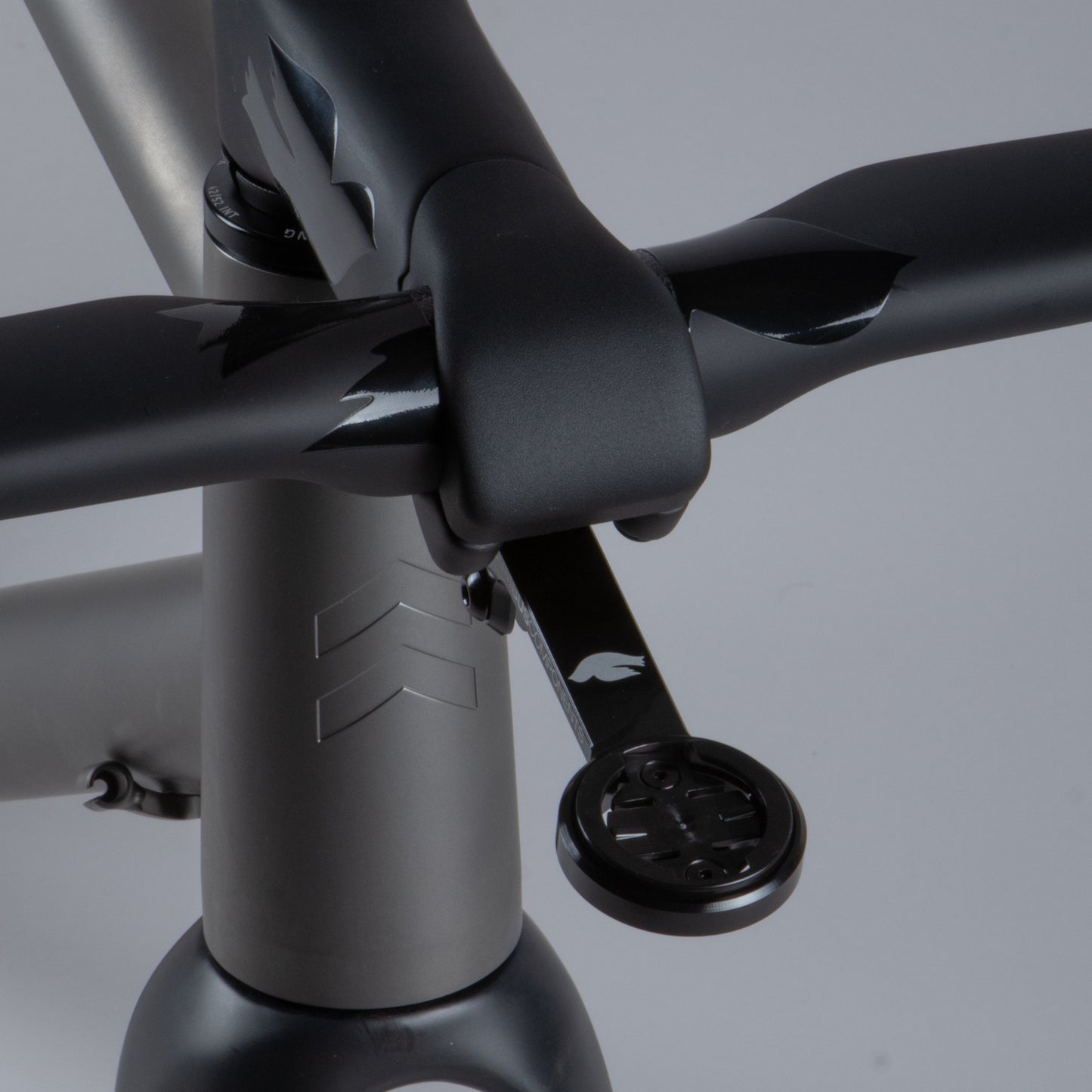

Columbus Race-Spoon |
- Mounting capability: Upper GPS mount and lower mount for camera/lights - Material: CNC-machined 6061-T6 aluminum - Weight: 53 g - Max load: 250 g - Compatibility: Garmin, adapter compatible |
