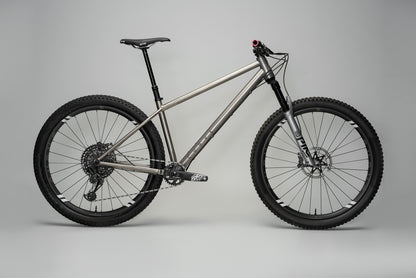

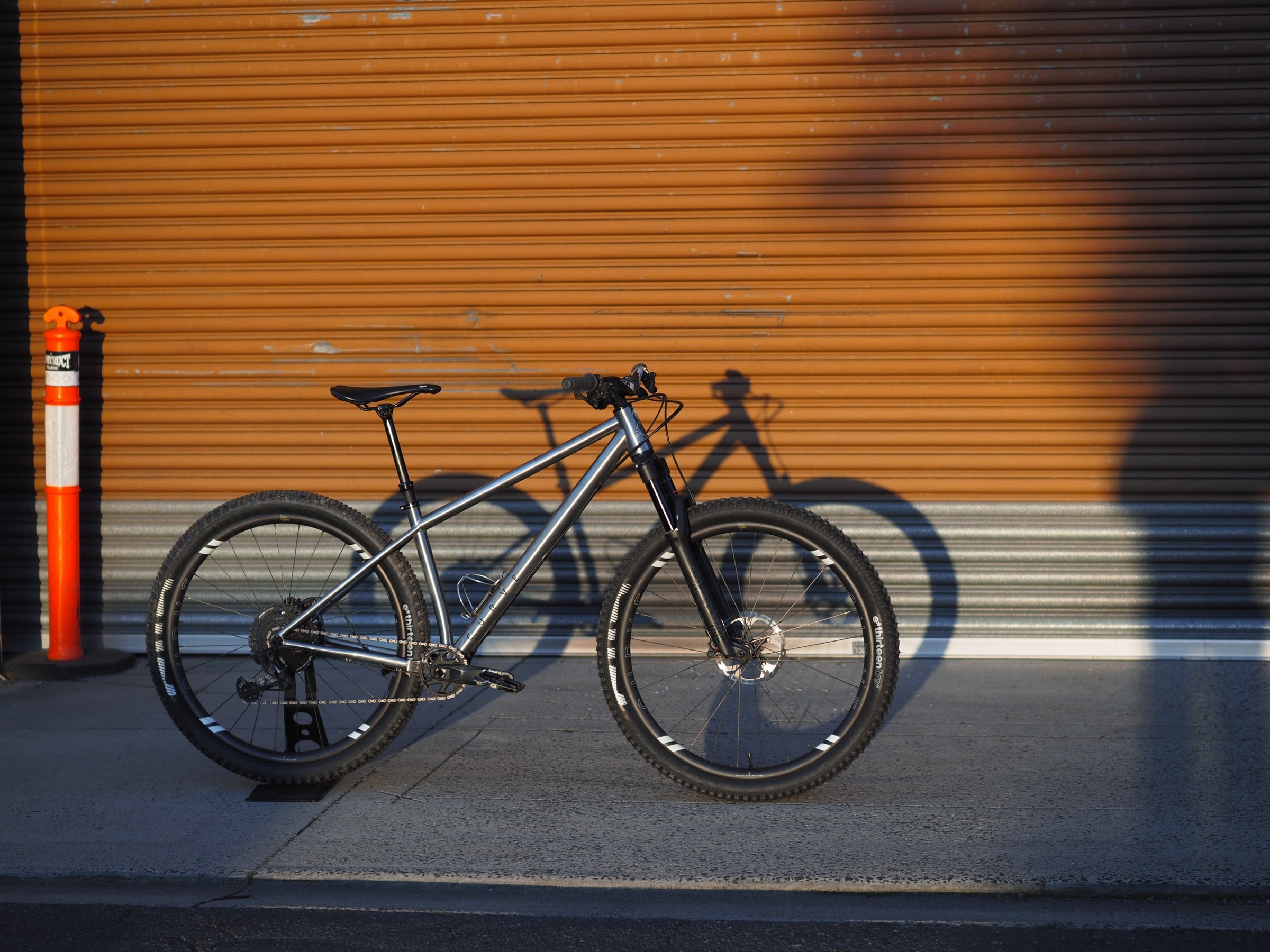

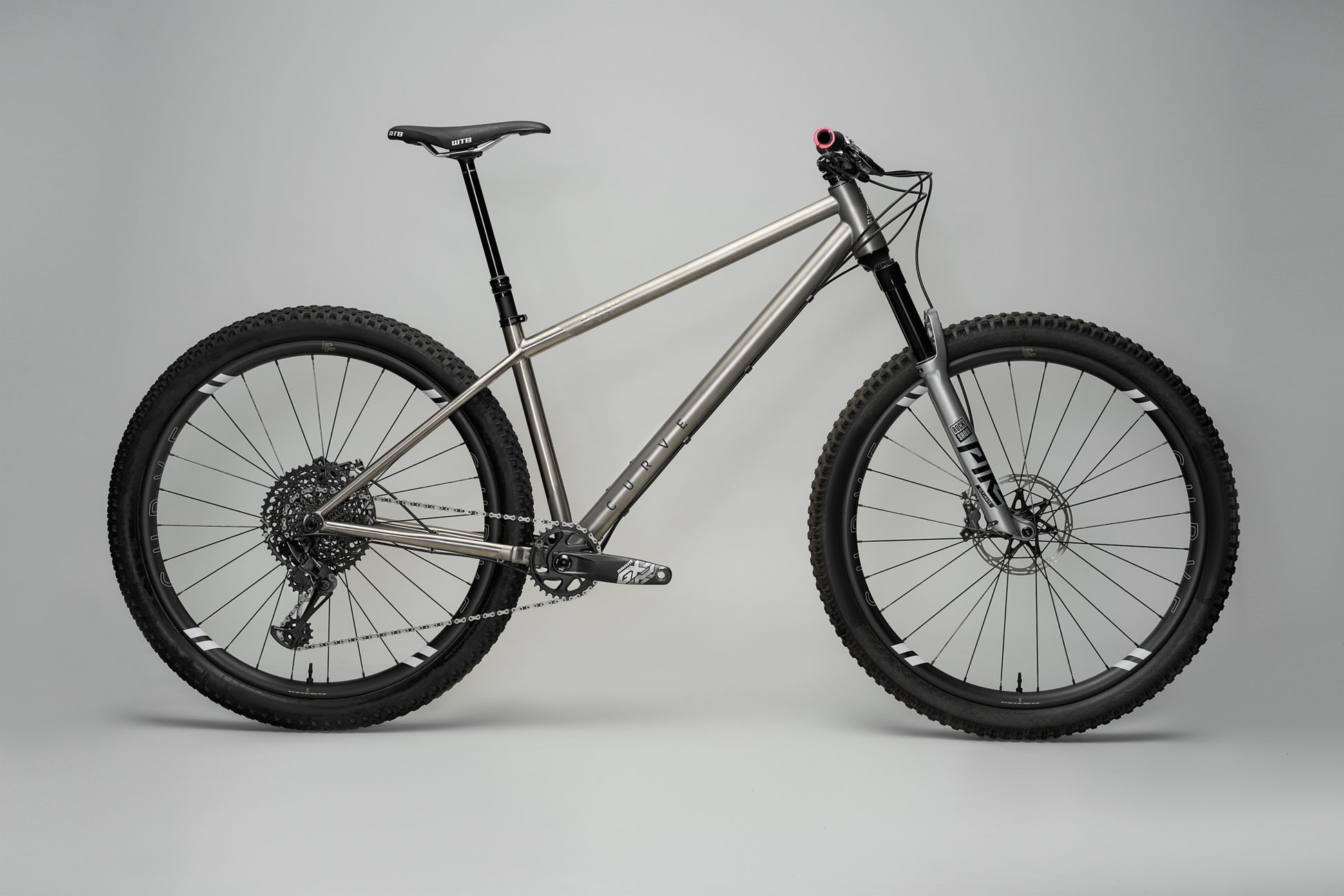

Meet the DownRock
The DownRock is our take on a modern hardtail mountain bike. Born from our love of riding local mountaibike trails and singletrack in Melbourne, this titanium bike is suited to anything from fast flow trails to blasting down technical downhill. It's not designed for gravel or bikepacking - this bike shines when pointed downhill. The DownRock geometry is optimised around a 130 mm travel fork and is compatible with up to 150 mm.
-
Drop It Like It’s Hot
The seat tubes are short in order to accommodate the latest generation of long travel dropper posts (170mm - 210mm). This is especially advantageous on a hardtail as your legs act as the rear suspension.
-
Balanced
Bottle cage mounts are placed low inside the front triangle and underneath the downtube to maintain the lowest possible centre of gravity and to give room in the front triangle for a frame bag if required.
-
Scaled Geometry
Front and rear centres are scaled proportionally across the sizes in order to provide the same ride and handling characteristics across a range of rider heights. This is especially important for riders with longer inseams as it prevents the saddle sitting too far behind above the rear wheel.
-
Re-route it
Full external Cable routing for ease of maintenance, quiet operation and maximum frame integrity (Seatpost stealth routing for dropper)
DownRock Specifications

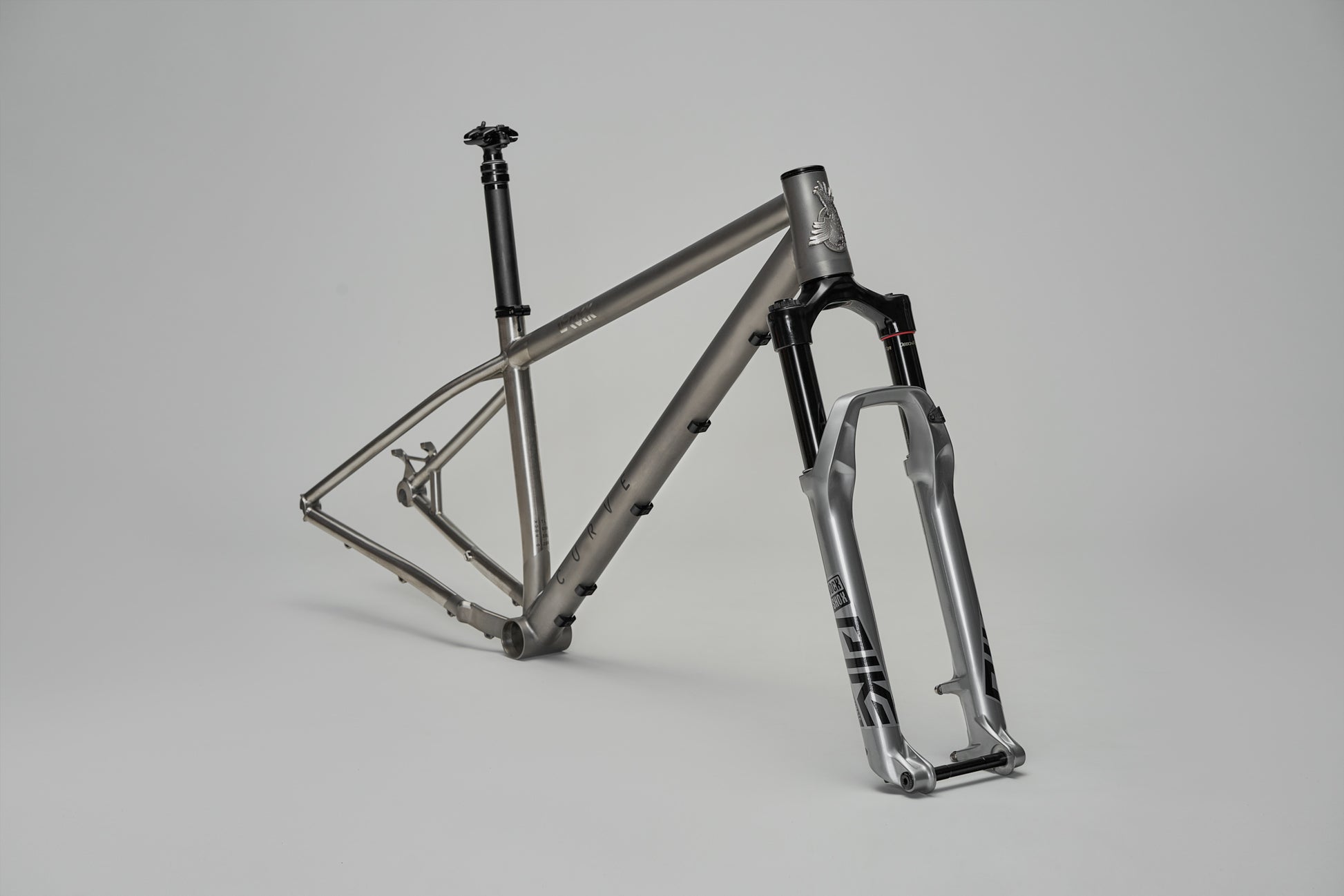

Frameset

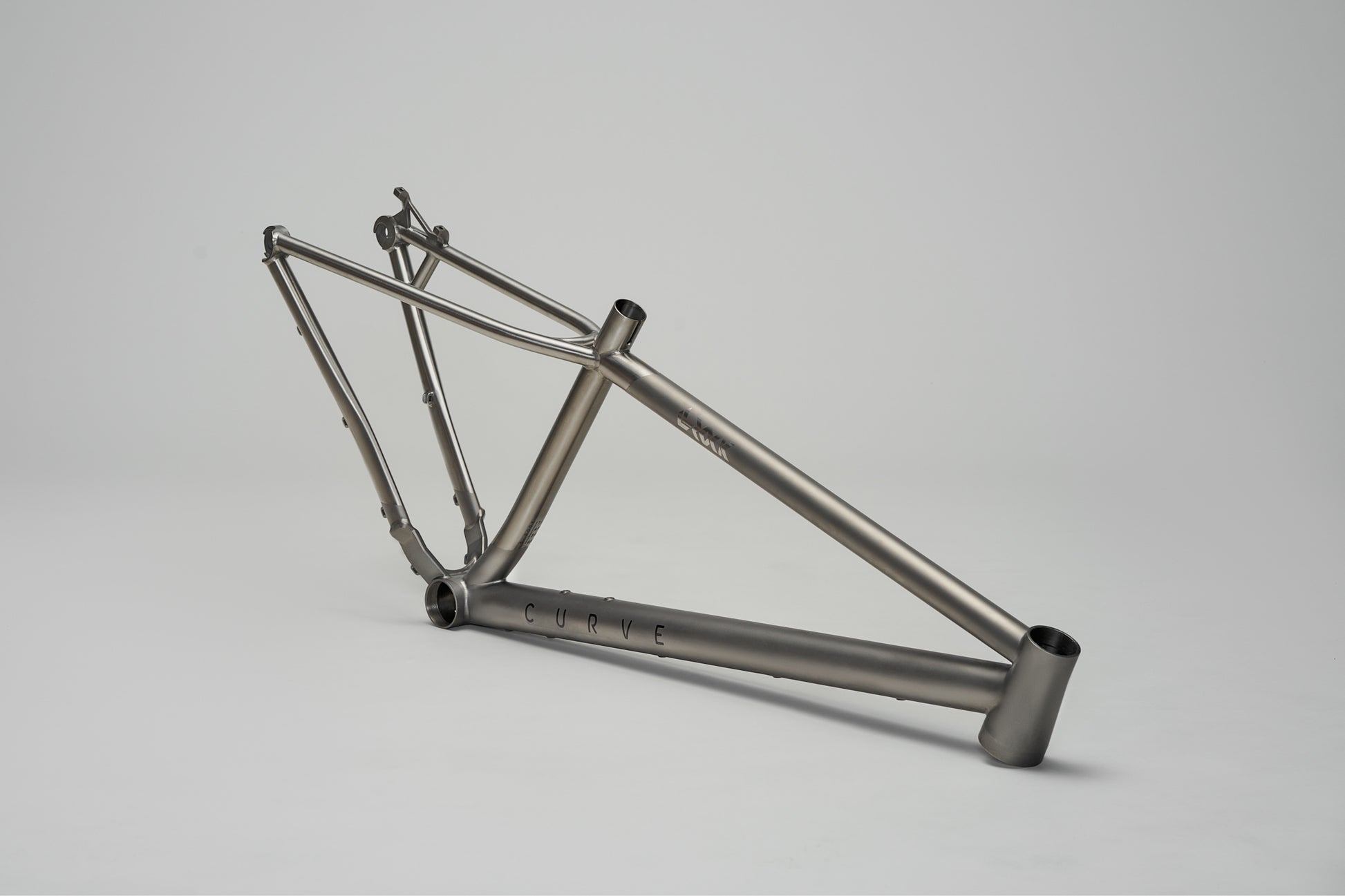

Frame - Curve Titanium Downrock Hardtail MTB
Fork - RockShox Pike Ultimate Charger 2 RC2 29" Boost™ 15X110 MXL Stealth Debonair 130 Gloss Silver
Headset - Curve 44/56
Seat Clamp - Curve Alloy 34.9 mm
Seat Post - RockShox Reverb Stealth 31.6mm 175/200mm Travel
Other - Curve Cocky Headbadge, 12 x 148 mm rear & 15 x 110 mm front axles
Frameset Compatibility
Bottom Bracket - 73 mm T47 BB
Brakes - Post-mount disc, clearance for 180 - 200 mm front (fork & adapter dependent) and 180 mm rear rotors
Drivetrain - 1x only (no front derailleurs). Max chainring 32t. 52 mm chain-line
Fork - Compatible with 1 ⅛" - 1.5" tapered steerer. Frame optimised around 130 mm travel forks, compatible up to 150 mm. Fork offset 42 mm
Headtube - Tapered 56/44 Zero Stack Headtube (S.H.I.S.: ZS44/28.6 | ZS56/40)
Hub Spacing - Boost 12x148 mm rear dropout, RockShox Pike fork is Boost 15x110 mm.
Mounts - 2x Bottle Cage mounts
Cable Routing - Full external cable routingSeatpost stealth routing for dropper
Seatpost - 31.6 mm seatpost, 34.9 mm seat clamp. Optimised around 170-210 mm dropper seatposts.
Tyres - 82 mm tyre clearance for up to 29"x2.6” (66 mm)
Complete Build Specs
Wheels - Curve Dirt Hoops 29 Wider 40 XD Wheelset // Tubeless Ready // DT Swiss 350 CL hubs // CX Ray aero-bladed spokes
Shifter - SRAM SL X01 Eagle Trigger
Brakes - SRAM G2 RSC Alloy Post Mount Disc // SRAM Centrelock Rotors 180 mm Front, 180 mm Rear

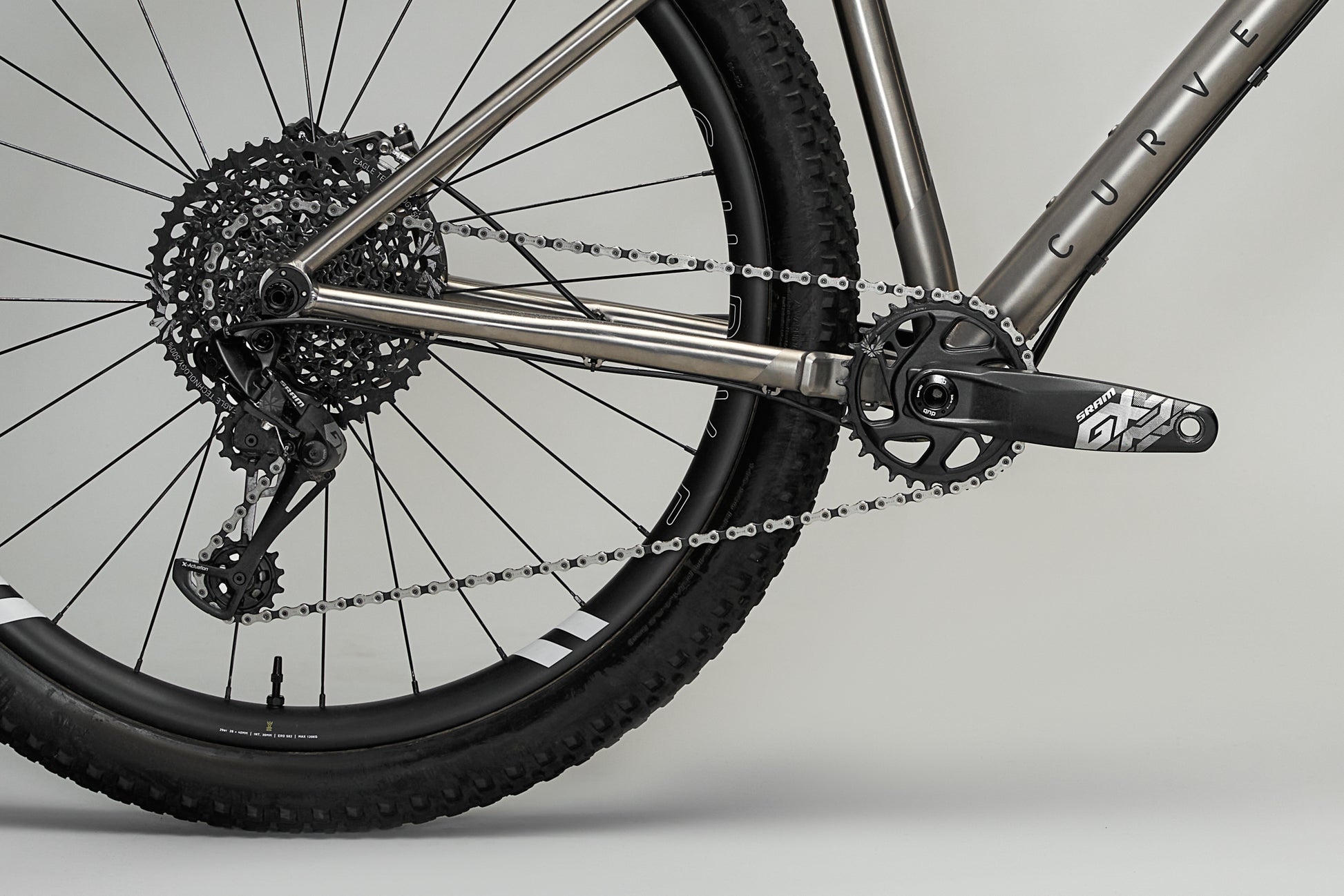

Crank - SRAM GX Eagle DUB 170 mm Direct Mount 32T
Bottom Bracket - CURVE T47 73 mm DUB
Derailleur - SRAM GX Eagle
Cassette - GX Eagle 10-50t
Chain - GX Eagle 12 sp

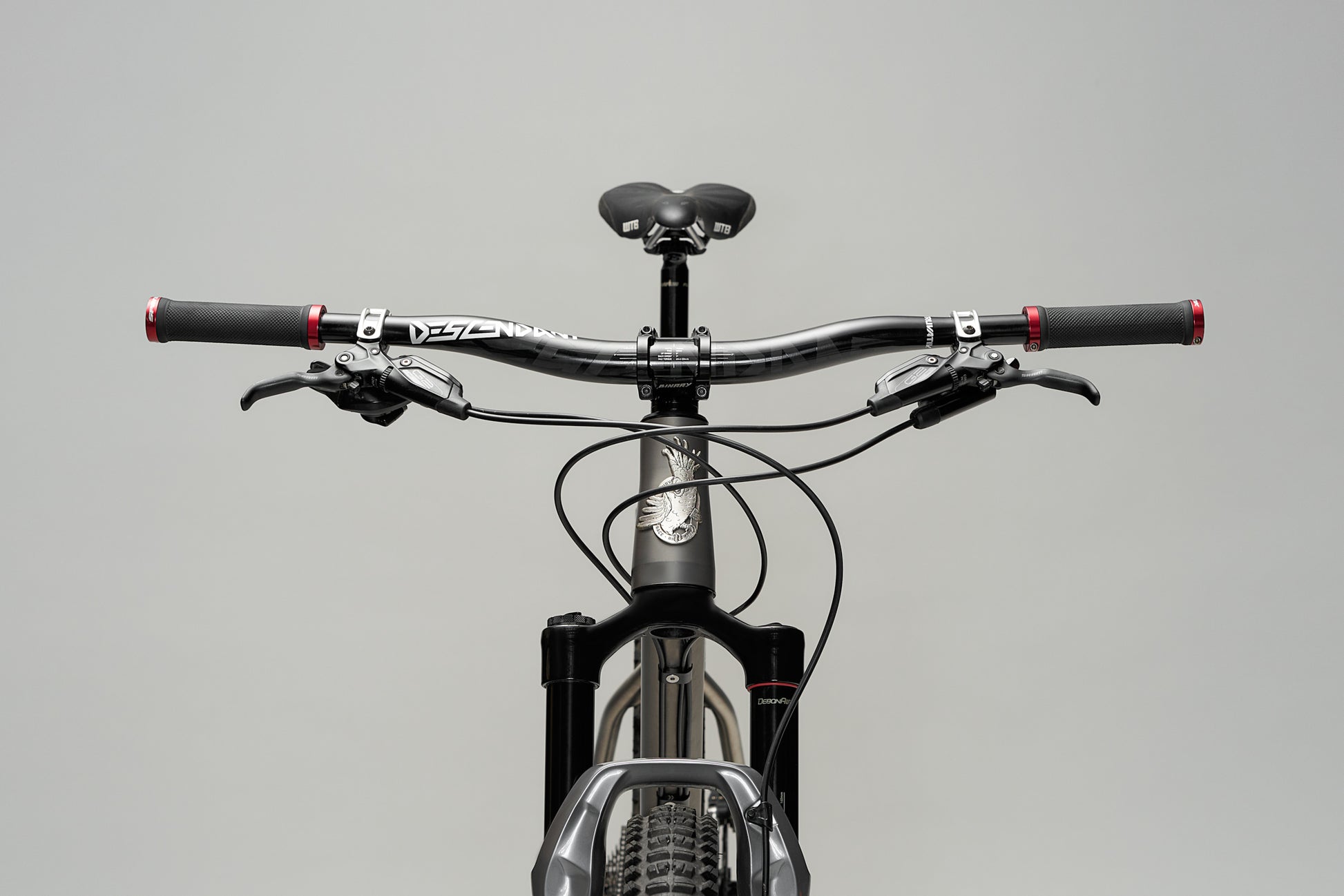

Bars - Joystick 8-BIT LT 28 mm Rise Alloy
Stem - Joystick Binary 35 mm 31.8
Saddle - Fi'zi:k Vento Argo
Tyres - e*thirteen TRS S/S Race 29*2.35
Grips - Joystick Binary Single Clamp
*PLEASE NOTE: Spec subject to change according to availability
