The Future is W I D E
Designed in Melbourne
Walmer Bars are designed to service the rigours and demands of rugged gravel and off-road bikepacking. No handlebar on the market was the right width or shape, so we decided to create our own.
Bikepacking Heaven
Originally intended to complement the new GMX+ bikepacking platform, Walmer Bars also work with any gravel bike or off-road beast. Walmer Bars bring the stability and control of MTB bars combined with the multiple hand positions of drop bars. The extra width also offers more storage space for bar-mounted bags, lights, navigation etc.
Why Wide Drop Bars?
The ability to change hand position regularly prevents pressure and tension build-up, and helps minimise numbness and blisters. A wider handlebar also offers more stability and control, particularly when descending sketchy terrain on a loaded bike. It also gives added leverage when tackling technical climbs.
What’s with the Name?
Breathe in! Named after a narrow pedestrian/cycle bridge on the Yarra River in Melbourne. There's little room for anything else if Walmer Bars are crossing.
Specs
| Walmer Bar Sizes | 40, 43, 46BP, 50BP, 55, 60 |
| Hood Width (mm) | 400, 430, 460, 500, 550, 600 |
| Total Width (mm) | 550, 580, 610, 650, 700, 750 |
| Weight (grams) | 358, 378, 397, 422, 423, 450 |
| Reach (mm) | 65mm | 60mm (sizes 55 & 60) |
| Drop (mm) | 110 |
| Flare | 29° |
| Sweep | 7° |
| Clamp Size (mm) | 31.8 |
| Drop Section Diameter (mm) | 23.8 |
Influenced by MTB bar design, we've integrated 7° of sweep to the flat section. This shortens the reach to your hoods to counteract the wide grip.

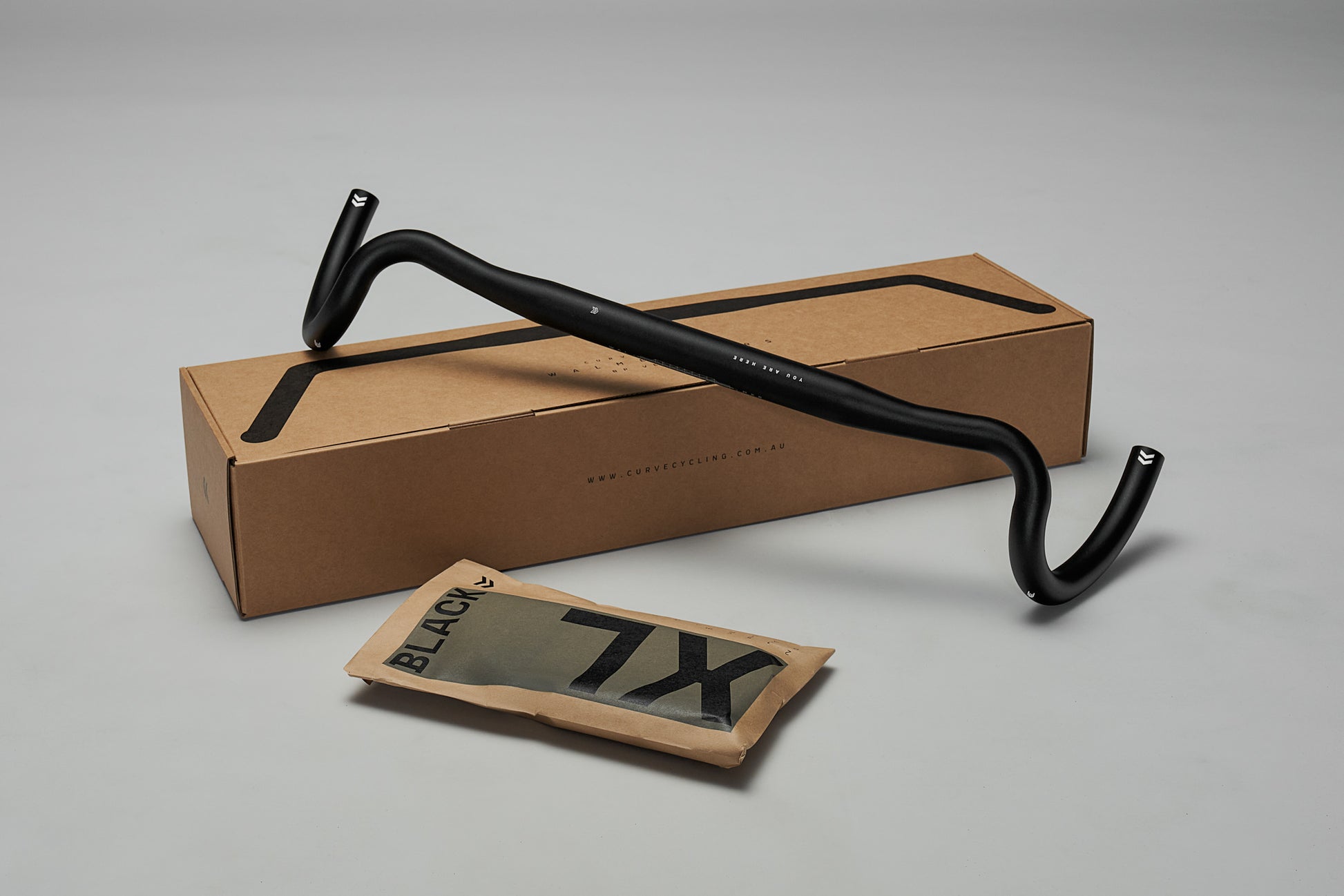

What's in the box
| Walmer Bar | Curve 6066 alloy off-road drop bar. 31.8 at clamp. See Spec table for size guide. |
| Extra Long Bar tape | Made for Curve by Velo, this tape is anti-slip and 3.2mm thick for shock reduction. |
FAQs
| Which size should I get? | Use your bike size as a guide for drop bar 29er rigs. The 46 and 50 go well on gravel bikes. |
| Can you ship to my hometown? | Yes, we ship globally. Shipping cost will be calculated upon checkout after you enter your postal address. |
| Can I double wrap these? | Of course you can. Some will triple! Make sure you keep the extra-long tape aside for the final layer. |
Handsome Steve by the iconic Walmer St Bridge
Walmer 60 top, Zipp Ergo 70 SL 44cm bar below
