GXR Ti Ekar G4T 35
GXR Ti Ekar G4T 35
Contact us for help finding the perfect size for you!
Couldn't load pickup availability
Enquire
Enquire
For info on availability, please contact sales@curvecycling.com,
call us on 03 9088 0274.
Alternatively, Enquire Now.
Geometry
Geometry
Click to zoom into the geo chart.

Shipping
Shipping
Free International Shipping for all Framesets, Complete Bikes, Forks, Wheelsets, Bars and Rocket Pooches is included in the sales price (*excludes Belgie DISC Ultegra)
All other products are subject to shipping charges calculated at checkout. See our Shipping Policy for further details.
FAQs
FAQs
Check HERE for further info regarding custom paint, bike set up and more.





Same Kev, New Feel
Curve has been fortunate enough to get ahold of a large number of the gravel-orientated Campagnolo Ekar groupsets, and we could think of no better bike to utilise these premium parts than our own Curve GXR, a.k.a Kevin!
Kev still maintains all the features that have propelled him to be our most popular, multi-discipline bike like our custom yoke allowing for 700c or 650b wheel options, 1x or 2x drivetrain compatibility and ample space for bikepacking bags, but now has acquired the self-styled 'world's lightest gravel groupset' and arguably best looking!
Named after and tested on the diverse, lesser-known foothills of Cima Ekar in the Venetian PreAlps, the Ekar 13-speed groupset is designed around a 1x-only system to provide a wide gear ratio for the mountainous ascents with the best chain security when traversing the gravel paths, singletrack and rock-laden descents.
With only limited numbers of Ekar Kev, we are very excited to have the opportunity to support our dealers with this build option but more so looking forward to seeing Ekar Kev take on some epic adventures around the world with a bit of Italian flare to boot!

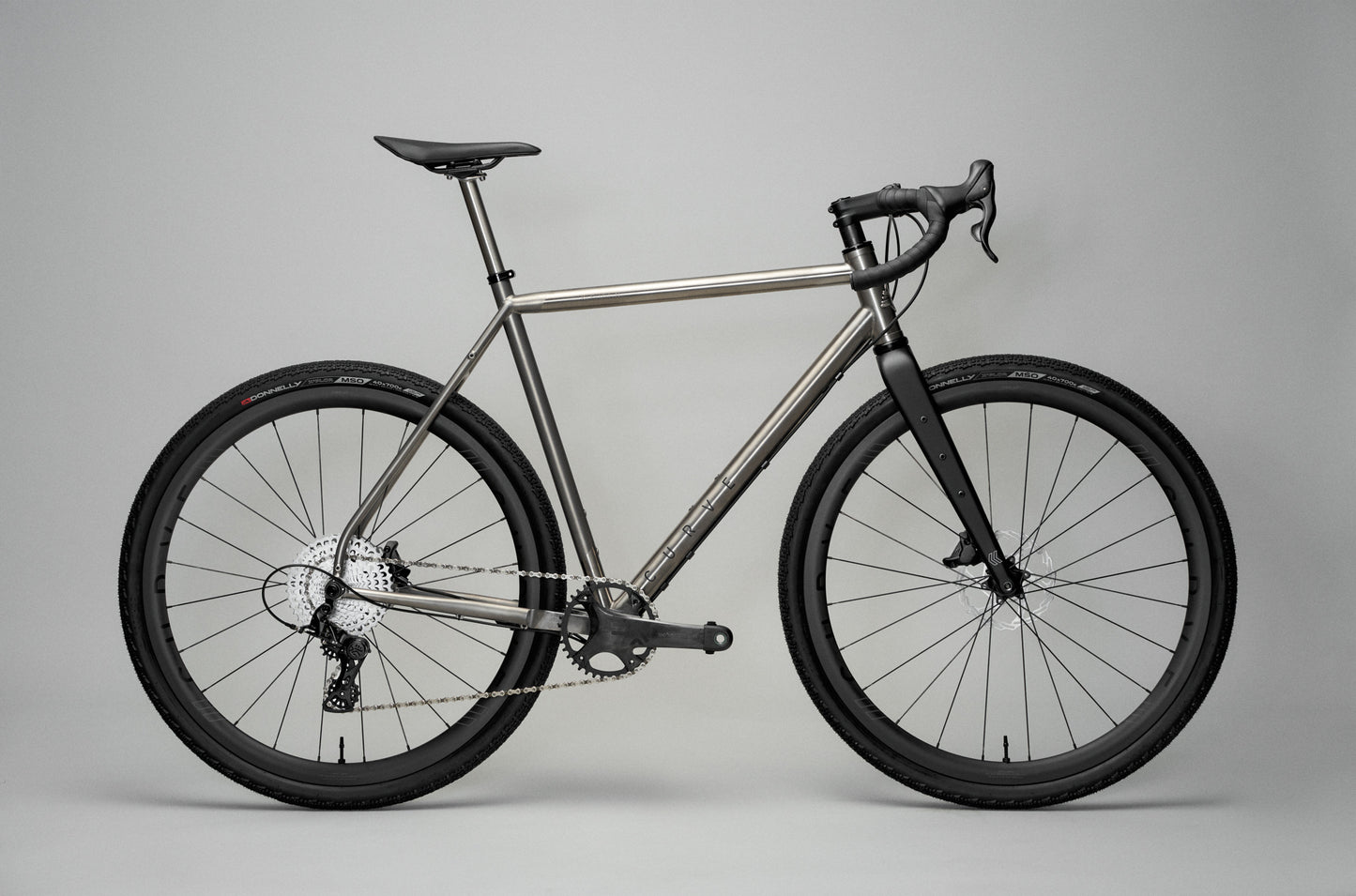

GXR Specifications

Frameset
Frame - Titanium Curve GXR

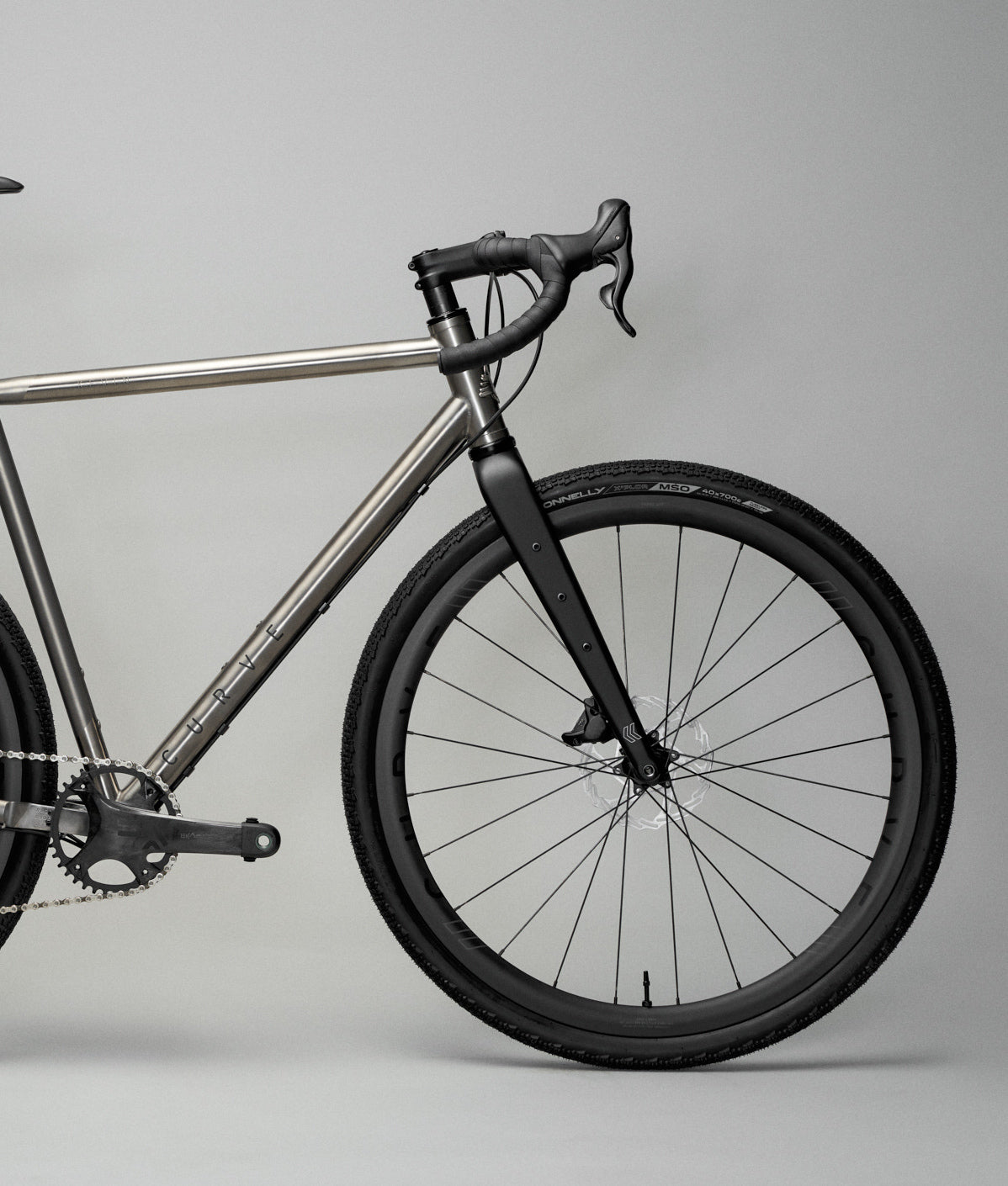

Fork - Curve Ride 400
Headset - Curve 44 mm semi-internal
Seat Clamp - Curve Alloy 31.8 mm
Other - Curve Cocky Headbadge, 12 mm Front & Rear Axles, spare rear derailleur hanger
Groupset Options
Campagnolo Ekar

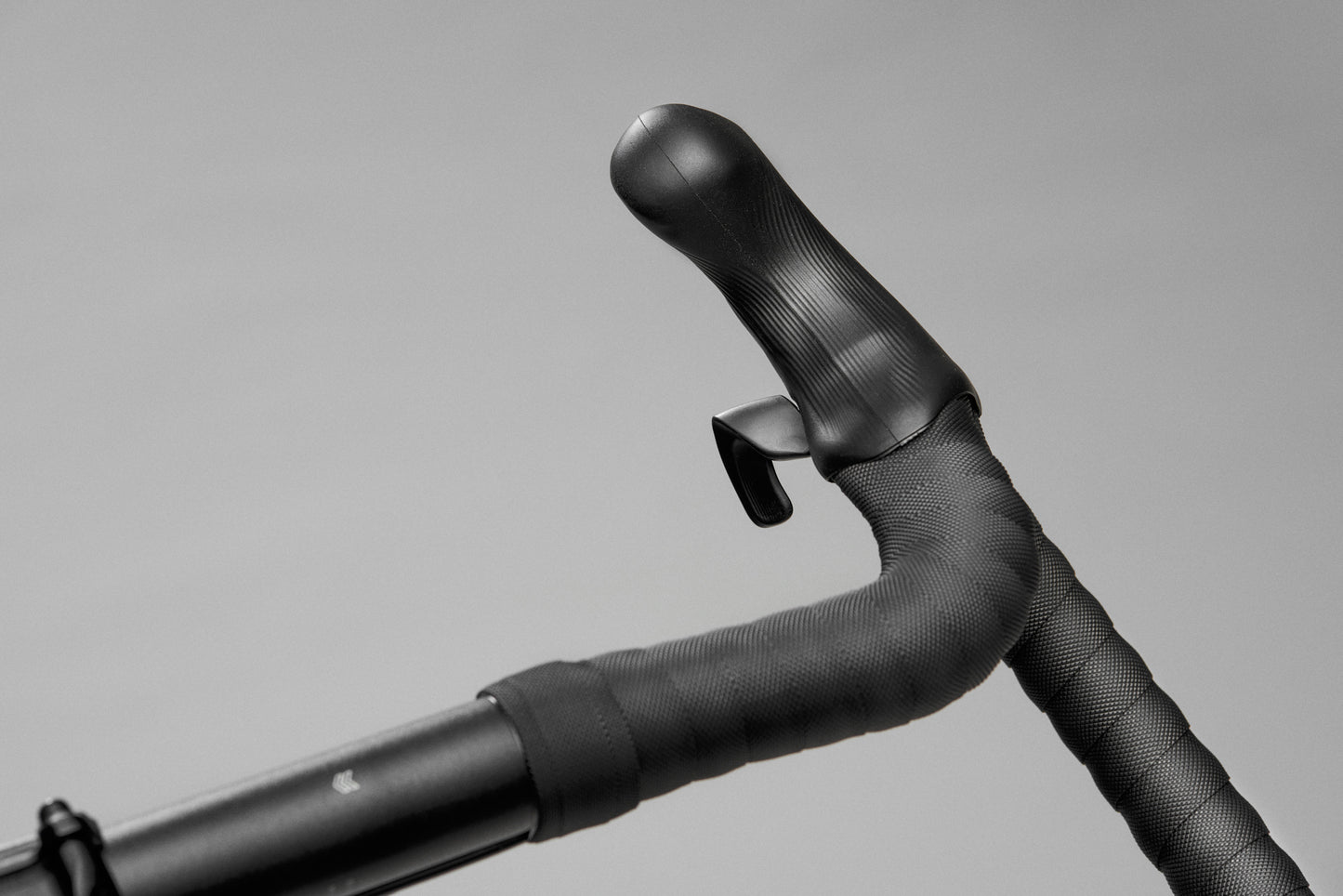

Shifter/Levers - Campagnolo Ekar 1x13 sp - LHR / RHF
Brakes - Ekar Caliper w/160 mm rotors
Crank - Ekar 13 sp 38t
XXS-S: 170 mm | M-LG: 172.5 mm | XL-XXL: 175 mm

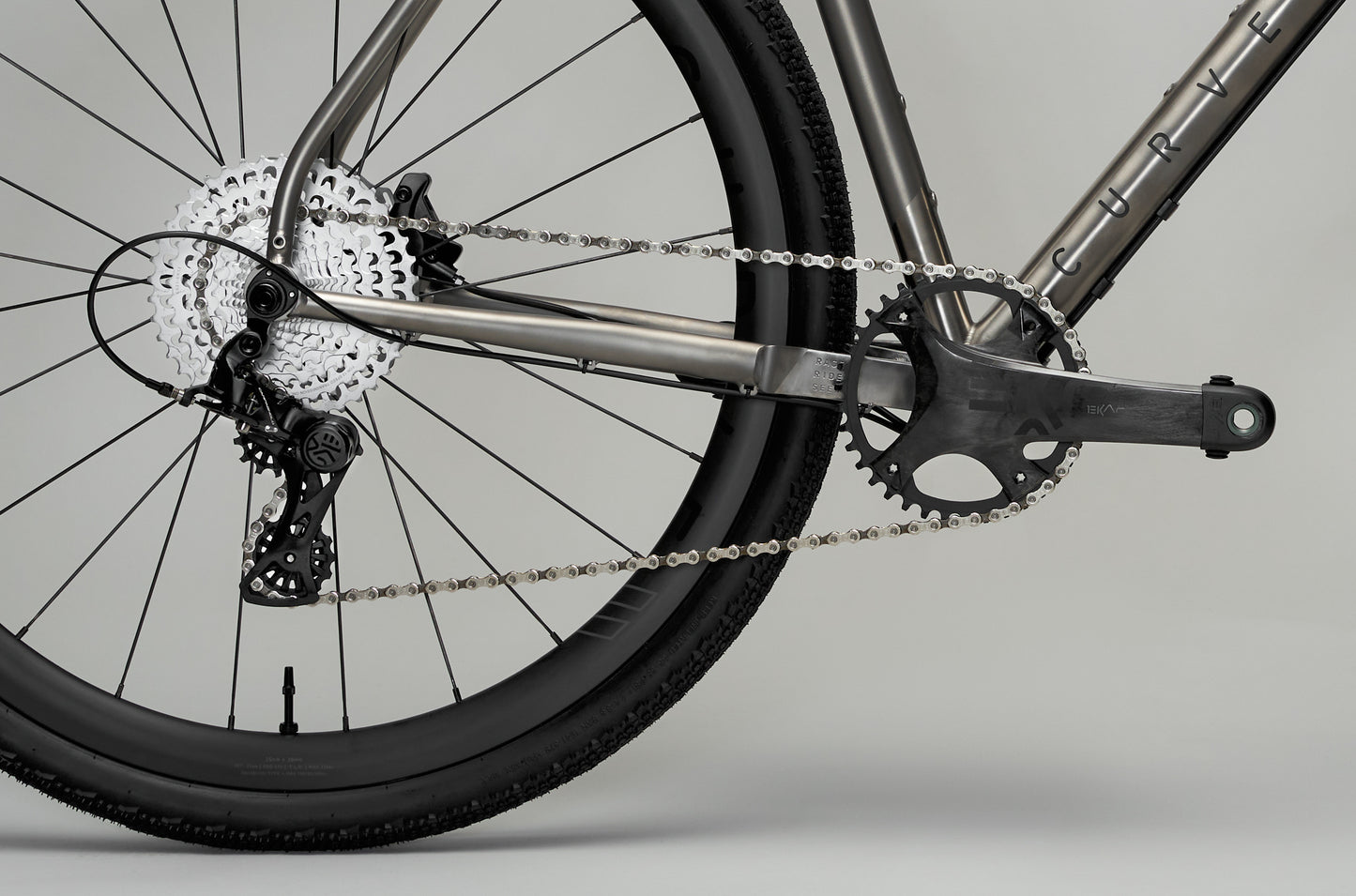

Rear Derailleur - Ekar 1x13
Cassette - Ekar Cassette 9-42t
Chain - Ekar 13 sp C-Link
Wheels
G4T 35 - 700C
Curve carbon all-road wheels:
- 21 mm internal, 28 mm external, 35 mm deep
- Hub: DT Swiss 350 24H Centre Lock - N3W Freehub
- Spokes & Nipples: Sapim CX Ray & Brass
Finishing Kit
Bottom Bracket - Curve T47 68 mm - Ekar Specific

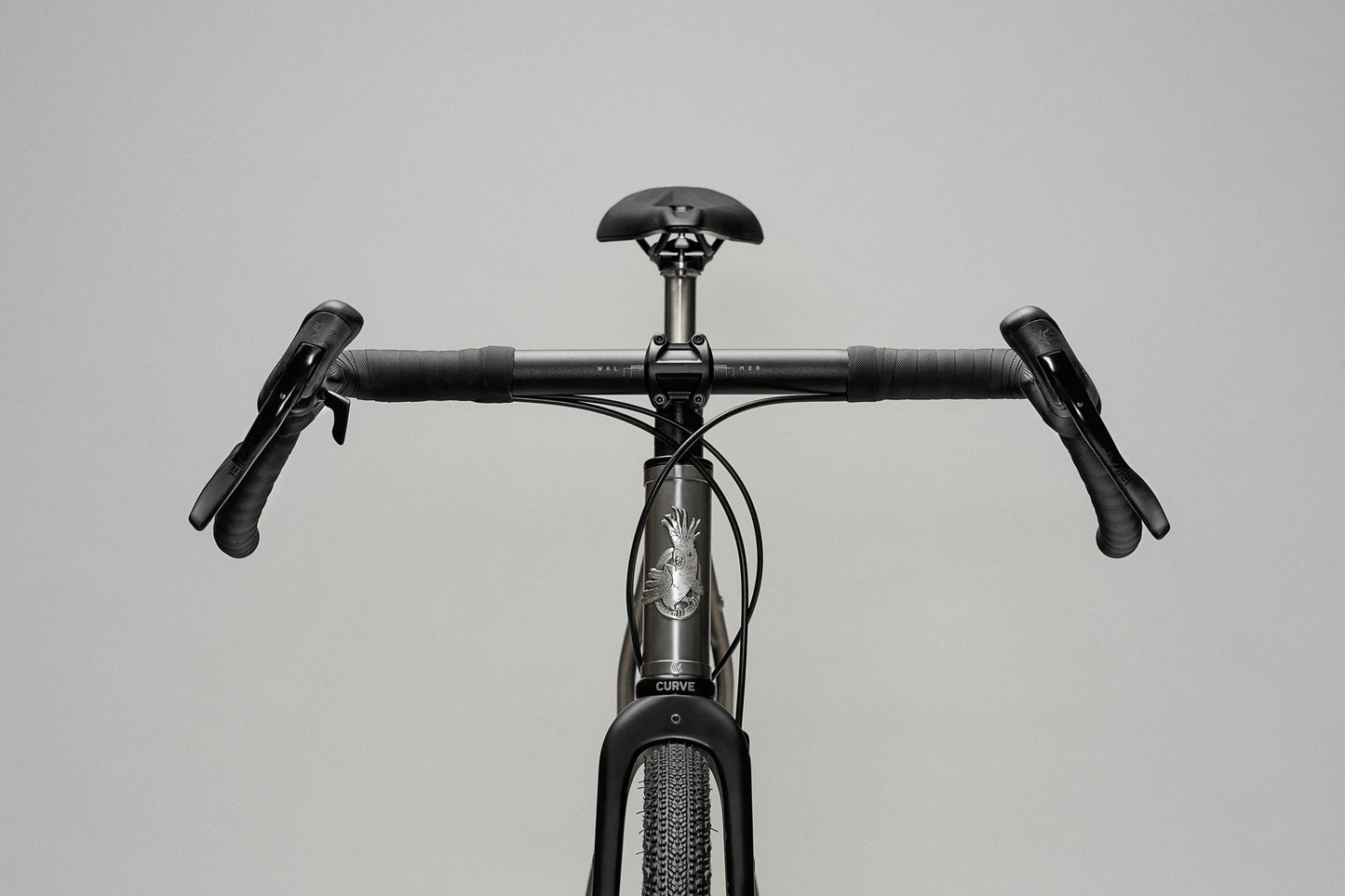

Bars - Curve Walmer Bar
XXS: 43 | XS-M: 46 | L–XXL: 50
Stem - FSA V-Drive
XXS: 60 mm | XS-S: 70 mm | M-LG: 80 mm | XL-XXL: 90 mm
Seatpost - Curve Titanium 27.2 x 350 mm
Saddle - Fi'zi:k Vento Argo
Tyres - Goodyear Connector Ultimate Tubeless - Black 700c x 40mm
Bar Tape - Curve - black anti-shock
PLEASE NOTE: Spec is subject to change according to availability
